Product Details:
Payment & Shipping Terms:
|
Component: | Daewoo Radiator | Body Material: | Aluminium |
---|---|---|---|
Cold Style: | Water-cooled | Structure: | Seal Type |
Radiator Type: | Direct-flow | Water Temperature Sensor Type: | Switch Type |
Radiator Core Type: | Tube-fin | Cooling Fluid Type: | Glycerin |
Cooling Fluid Brand: | Mobil | Car Type: | KALOS'02-12i/AVEO'05-1.2i |
OEM: | 96536524 | DPI: | 2774 |

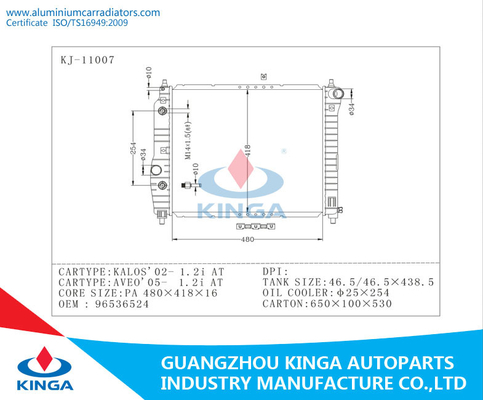

Core Size: | PA 480*418*16 Mm | Tank Size: | 46.5/46.5*438.5 Mm |
Transmission: | At | Oil Cooler: | Diameter 25*254Mm |
OOulet/Inlet Pipe: | Diameter 34mm | Carton: | 650*100*530 Mm |
Place Of Origin: | Guangzhou China ( Mainland ) | Inlet Location: | Right Top |
Export Market: | Global | ||
High Light: | aluminum auto radiator,high performance aluminum radiators |

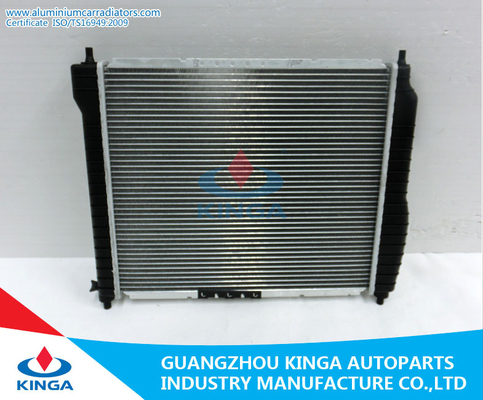

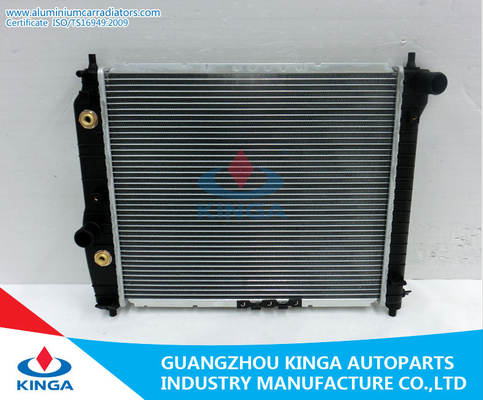

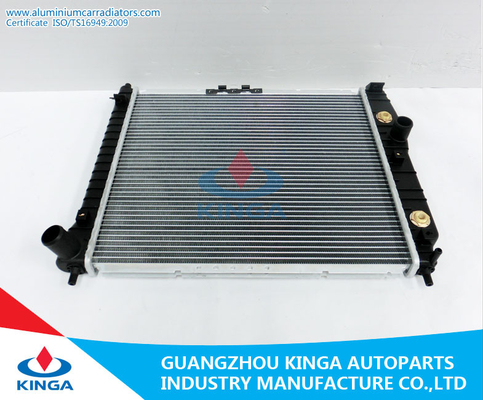

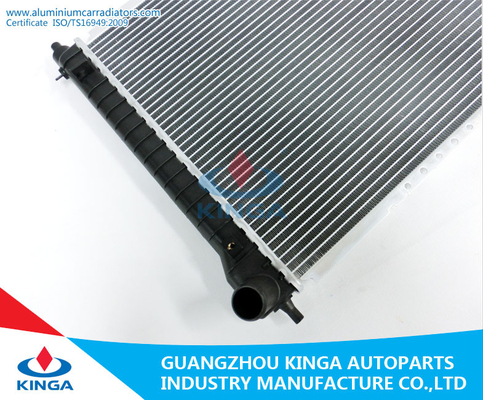

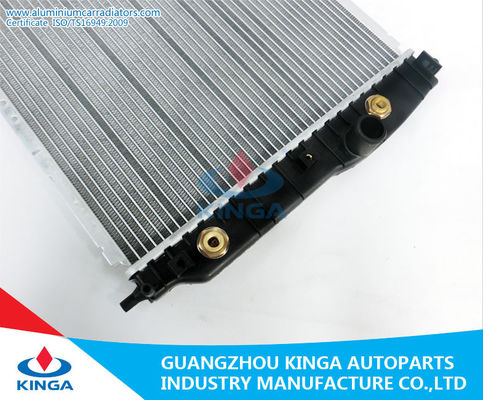

96536524 Daewoo Auto Radiator Kalos 02- 1.2i / Aveo 05- 1.2i At
Specification
|
Product Model |
KJ-11007-PA16 |
Car brand |
KALOS'02-12i/AVEO'05-1.2i |
|
OEM |
96536524 |
|
Material |
Aluminum body |
|
Cooling Type |
Water-cooled |
|
Core Dimensions (mm) |
PA 480*418*16 Mm |
|
Tank (Dimensionsmm) |
46.5/46.5*438.5 Mm |
|
|
Fin Type |
Wavy Fin |
Core |
high strength, high heat conductivity,high safety coefficient |
|
cleaning |
High efficiency,little corrosion to metal , few pollution |
|
brazing |
Strict control of degree, temperature and time |
|
Tank |
Tank Made of Reinforced Heat and Wearing Resisting PA66 Material |
|
Test |
Every Radiator will be test by air-tight test and Pressure Text,0.15Mpa/min |
1.Structure: Aluminum Core,Plastic Tank,Machine joint radiator
2.Material:High grade Aluminum,the tube is Excellent Air tightness and core pressure Resistance.
3.High heat transfer ,superior corrosion and humidity Resistance.
4.Long lifetime.
5.Low costs due to good durability and stability.
6. Easy installation with no mounting modifications.
7. Qualifications: ISO9001:2000, ISO/TS16949
Part NO. |
OEM |
Car type |
item name |
KJ-11001 |
96144570 |
CIELO/NEXTA'94-00 AT |
Daewoo Radiator |
KJ-11002 |
96144847/96144850 |
CIELO/NEXTA'94-00 MT |
Daewoo Radiator |
KJ-11003 |
96182648 |
ESPERO'94-97 AT |
Daewoo Radiator |
KJ-11004 |
96143947 |
ESPERO'94-97 MT |
Daewoo Radiator |
KJ-11005 |
96278702/96328702 |
EVANDA/MAGNUS'2.0L'00- AT |
Daewoo Radiator |
KJ-11006 |
96278701 |
EVANDA/MAGNUS'2.0L'00- MT |
Daewoo Radiator |
KJ-11007 |
96536524 |
KALOS'02- 1.2i AT |
Daewoo Radiator |
KJ-11008 |
96536523 |
KALOS'02- 1.2i MT |
Daewoo Radiator |
KJ-11009 |
96182260 |
LANOS'97- AT |
Daewoo Radiator |
KJ-11010 |
96182261 |
LANOS'97- MT |
Daewoo Radiator |
KJ-11015A |
96351931 |
NUBRIA'97- AT |
Daewoo Radiator |
KJ-11016A |
96181369 |
NUBRIA'97- MT |
Daewoo Radiator |
KJ-11017 |
96351103 |
NUBRIA/LEGANZA'97-03 AT |
Daewoo Radiator |
KJ-11018 |
96351102/96273596 |
NUBRIA/LEGANZA'97-03 MT |
Daewoo Radiator |
KJ-11019 |
95663244 |
NUBIRA/EXCELLE'03- AT |
Daewoo Radiator |
KJ-11020 |
95663243/96553378 |
NUBIRA/EXCELLE'03- MT |
Daewoo Radiator |
KJ-11023A |
|
CHEVROLET EPICA'08- AT |
Daewoo Radiator |
KJ-11024A |
|
CHEVROLET EPICA'08- MT |
Daewoo Radiator |
KJ-11025 |
96325333/96325520 |
MATIZ'98- AT |
Daewoo Radiator |
KJ-11026 |
96314162/96314163 |
MATIZ'98- MT |
Daewoo Radiator |
KJ-11027 |
96322941 |
SPARK/QQ 1.1 MT |
Daewoo Radiator |
KJ-11028 |
96322942 |
SPARK/QQ AT |
Daewoo Radiator |
KJ-11029 |
96536526 |
KALOS'02- 1.4i 16V AT |
Daewoo Radiator |
KJ-11030 |
96536525 |
KALOS'02- 1.4i 16V MT |
Daewoo Radiator |
KJ-11031 |
|
RACER'94- AT |
Daewoo Radiator |
KJ-11032 |
|
RACER'94- MT |
Daewoo Radiator |
KJ-11033 |
96145700 |
RACER AT |
Daewoo Radiator |
KJ-11034 |
96143700 |
RACER MT |
Daewoo Radiator |
KJ-11035 |
|
PRINCE AT |
Daewoo Radiator |
KJ-11036 |
|
PRINCE MT |
Daewoo Radiator |
KJ-11037 |
|
NUBRIA AT |
Daewoo Radiator |
KJ-11038 |
|
NUBRIA MT |
Daewoo Radiator |
KJ-11039 |
|
PRINCE AT |
Daewoo Radiator |
KJ-11040 |
|
PRINCE MT |
Daewoo Radiator |
KJ-11041 |
96477777/96591475 |
MATIZ 0.8/1.0i'0.5 MT SPARK 0.8/1.0i'0.5 MT |
Daewoo Radiator |
KJ-11042 |
|
KALOS'09-2010 AVEO AT |
Daewoo Radiator |
KJ-11043 |
|
KALOS'09-2010 AVEO MT |
Daewoo Radiator |
Production Process
Fin Production → Ultrasonic wave wash → Core assembling → Core brazing → Withhold the Water tank →
Spare parts machining → Leakage&pressure → Packaging
Our advantages
OEM Service : Customers simply provide OEM number,Car brand,then we can do the radiator for you.
Team Support : Professional design team and technology team provide 24 hours service
and one Year Warranty
Factory Support : Accept sample order, economical and practical.
More service :
1) We can help buyers design specific products or produce products according to buyers' design.
2) We can print logo according to buyers' requirement.
3) We has exported to many countries, such as Korea, USA, German, Turkey, Russia, Mexico, etc.
4) After we ship the goods, we will email you the shipping information, as well as tracking number.
5) One year's warranty against B/L loading date. If you meet with quality problem,
we promise to replace goods
Trade information
Trade Terms |
FOB ShenZhen |
Payment Terms |
L/C T/T, Western Union |
Payment Condition |
30% deposit in advance, 70% balance before delivery |
Delivery Time |
30-40 working days after Money received |
Packing |
Neutral packing / Foam Corner Protector / Blister Packing / Cardboard Protector |
Shipping |
By sea |
About us
Guangzhou Kinga Auto parts Manufacture Co.,Ltd.
Our factory is specializing in the manufacture and export of radiator& condenser&auto
parts&hardware for more than 20 years. For those years,Our Factory continue to
expand fast.The employees are over 400 and we can produce the radiator
to 70,000PCS/months.The warehouse can have six containers at the same time.
Nowday,our service is more appreciation.The price is more Reasonable,the quality
is good durability and stability.The kinds of radiator and condenser have over 3,000 kinds.
Our factory new picture
Our packing
