Product Details:
Payment & Shipping Terms:
|
| Tank Size: | 41.5 / 41.5 * 390 Mm | Thickness: | 16 / 22 Mm |
|---|---|---|---|
| Core Size: | 600 * 368 * 16 / 22 Mm | Inlet Size: | Diameter 32 Mm |
| At / Mt: | At | Core Material: | Aluminum |
| Oil Cooler: | 22 * 275 Mm | Carton Size: | 810 * 110 * 540 Mm |
| Outlet Location: | Left Top | Inlet Location: | Right Bottom |
| High Light: | custom auto radiator,auto parts radiator |
||

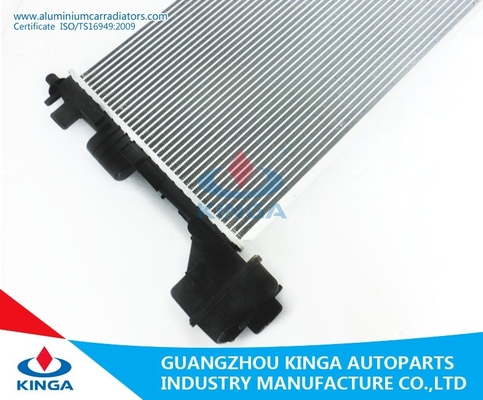

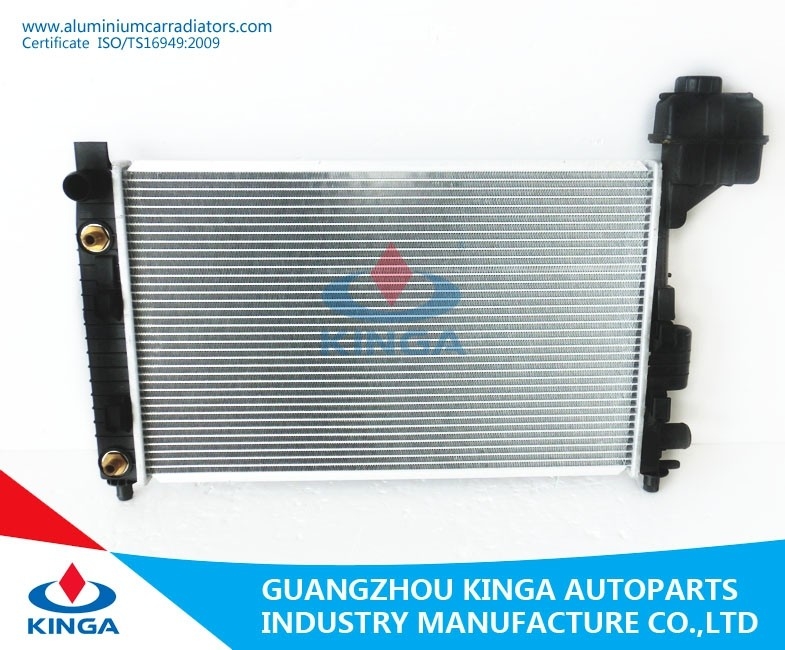

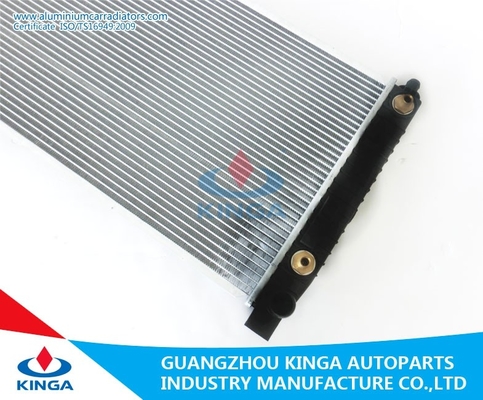

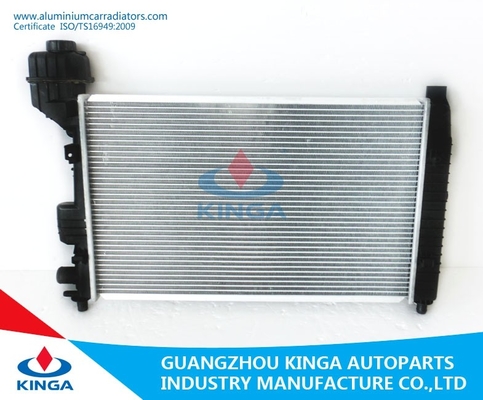

PA16 / 22 Aluminium Mercedes Benz Radiator W168 / A140 / A160 ' 97 - 00 - AT
Item Specifications
|
Manufacturer Part Number |
KJ - 40047 - PA16 / 22 |
|
OEM |
168 500 0302 / 0602 |
|
Car Type |
Benz Radiator |
|
Core Material |
Aluminum |
|
Tank Material |
Plastic |
|
Transmission |
AT |
|
Thickness |
16 / 22mm |
|
Core width |
368 mm |
|
Core Height |
600 mm |
|
Inlet Location |
Right Bottom |
|
Engine Oil Cooler: |
22 * 275 mm |
Auto Radiator (engine cooling)
Radiators are heat exchangers used for cooling internal combustion engines, mainly in automobiles but
also in piston-engined aircraft, railway locomotives, motorcycles, stationary generating plant or any similar use of such an engine.
Raditor Structure Chart
|
Brazed Radiator Structure |
||
|
1. Filler Neck |
8. Side Plate |
15. KINGA Logo |
|
2. Top Header Plate |
9. Core Height |
16. Bottom Header Plate |
|
3. Inlet Pipe |
10. Fin |
17. Water switch |
|
4. Top Tank |
11. Tube |
18. Bottom Tank |
|
5. Top Mounting Pins |
12. Core Width |
19. Oil Cooler |
|
6. Fan Mount |
13. Core Thickness |
20. Outlet Pipe |
|
7. Overflow Pipe |
14. Clip |
|
Our advantage
1. Efficiency: any inquiry or email will be replied within 24 hours.
2. Profession: more than 20 years technical and sales support team offer you the best service.
3. Delivery: 15-20 days for one container.
4. Guaranty: strict quality control through our quality control team, one year warranty against BL date,
any leakage will replace or return by money.
5. High quality and competitive price: we are using high quality materials, we have advanced production
equipment, strict requirements for production, good price.
Benz W168 / A140 / A160 ' 97 - 00 - AT
Pay Attention
①. Compare your radiator to the picture below .
② . Flush the entire cooling system of the vehicle .
③ . Radiator should not contact with any acid , alkali or other corrosive properties .
Please feel free to contact us for any question! Join us, this is a new beginning of the journey ,
you will feel the most efficient service, best quality and excellent reputation!
