Product Details:
Payment & Shipping Terms:
|
| Core Height: | 425 Mm | Core Thickness: | 32 / 36 / 40 Mm |
|---|---|---|---|
| Core Width: | 678 Mm | Inlet Location:: | Top Right |
| Inlet Size: | Diameter 38 Mm | Outlet Location: | Bottom Right |
| Row Quantity: | 1 YEAR | Transmission Cooler: | NO |
| Net Weight: | 3.7 / 3.9 / 4.9 Kg | Core Material: | Aluminium |
| Highlight: | automobile radiator,auto parts radiator |
||

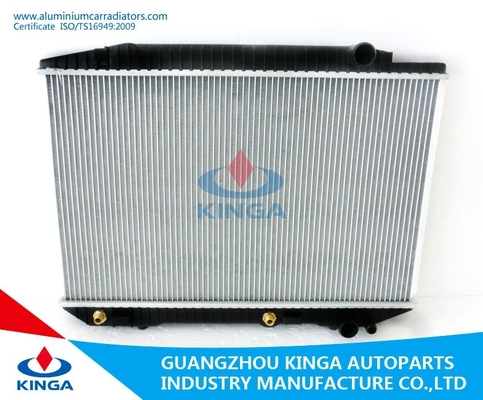

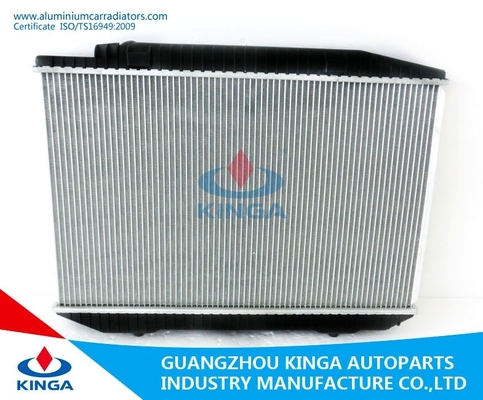

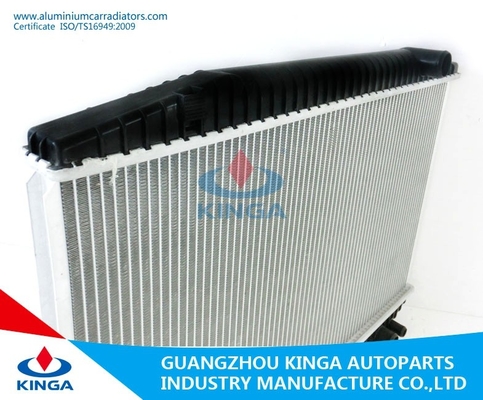

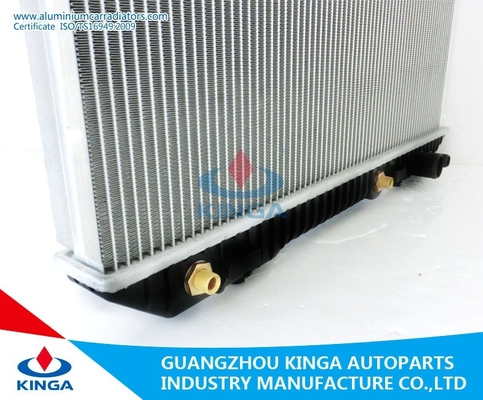

PA32 Aluminium Benz Radiator W126 / 560SE ' 79 - At OEM 1265004803 Oil Cooler 38 * 330
Item Specifications
| Manufacturer Part Number | KJ-40025 |
| OEM | 1265000103 / 1265001103 / 1265001803 / 1265003303 / 1265004803 / 1265004903 |
| Oil Cooler | Φ 38 * 330 |
| Car Type | W126 / 560SE ' 79- |
| Carton Size | 740 * 110 * 570 mm |
| Transmission | AT |
| Thickness | 32 mm |
| Core Size | 425 * 678 * 32 mm |
| Tank Size | 63 / 63 * 697 mm |
| Core Material | Aluminum |
| Tank Material | Plastic |
more information
| KJ-40027-PA32 | W124/200E'84-90 | PA32/AT |
| KJ-40027-PA36 | W124/200E'84-90 | PA36/AT |
| KJ-40028-PA32 | W124/200E'84-90 | PA32/MT |
| KJ-40028-PA36 | W124/200E'84-90 | PA36/MT |
Our Service
Kinga radiators are designed and tested to meet or exceed OE specifications for form, fit, and function.
Using premium quality materials and a clear focus on the highest heat transfer performance possible,
our engineers have designed this radiator to perform at the highest standards to ensure optimal cooling.
Question & Answer
20GP container about 450pcs
40HQ container about 1050pcs
Warranty:12 months
Structure Chart
| Brazed Radiator Structure | ||
| 1. Filler Neck | 8. Side Plate | 15. KINGA Logo |
| 2. Top Header Plate | 9. Core Height | 16. Bottom Header Plate |
| 3. Inlet Pipe | 10. Fin | 17. Water switch |
| 4. Top Tank | 11. Tube | 18. Bottom Tank |
| 5. Top Mounting Pins | 12. Core Width | 19. Oil Cooler |
| 6. Fan Mount | 13. Core Thickness | 20. Outlet Pipe |
| 7. Overflow Pipe | 14. Clip | |
Packing
Packaging design according to customer requirements.
NOTICE
1. Compare your radiator to the picture below
2. Flush the entire cooling system of the vehicle.
3. Use the astm-approved antifreeze and distilled or de-ionized water.
