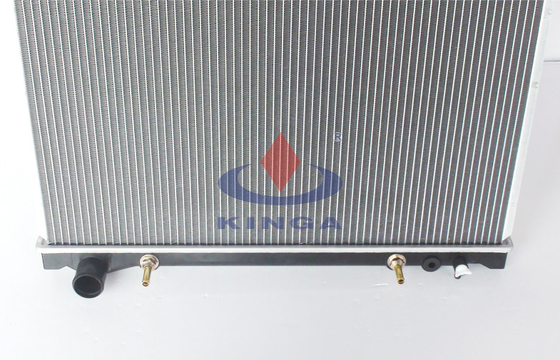

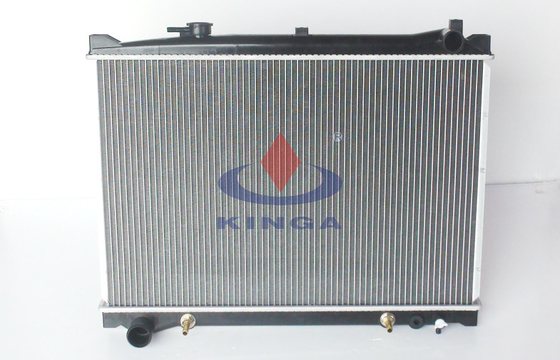

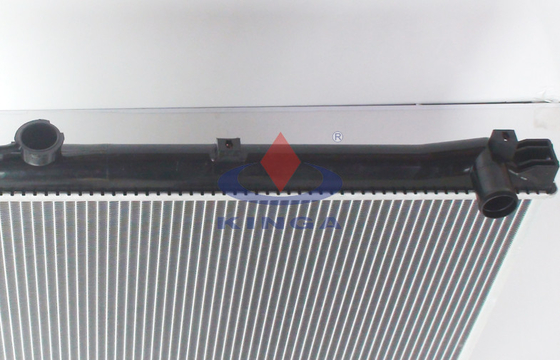

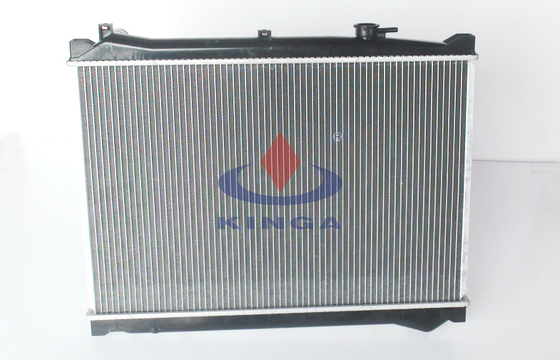

91 - 95 Mazda MPV Radiator car parts radiator JE16-15-200D , JE16-15-200E , JE77-15-200

Large Image : 91 - 95 Mazda MPV Radiator car parts radiator JE16-15-200D , JE16-15-200E , JE77-15-200

Product Details:

Place of Origin:	MADE IN CHINA
Brand Name:	KINGA
Certification:	ISO / TS 16949
Model Number:	KJ-16049-PA16 / 26

Payment & Shipping Terms:

Minimum Order Quantity:	30PCS
Price:	Negotiation
Packaging Details:	Neutral Packing / Foam Corner Protector / Blister Packing / Cardboard Protector
Delivery Time:	45 Days
Payment Terms:	T/T L/C
Supply Ability:	600,000 PCS / Year

Contact Now

Detailed Product Description

Highlight:

auto radiator

auto parts radiator

91 - 95 Mazda MPV Radiator car parts radiator JE16-15-200D , JE16-15-200E , JE77-15-200

Item Specifications

Manufacturer Part Number	KJ-16049
OEM	JE16 - 15 - 200D / JE16 - 15 - 200E JE77 - 15 - 200
Car Type	MPV 91 - 95
Carton Size	715 * 115 * 595 mm
Oil cooler	Φ 22 * 250
Transmission	AT
Thickness	16 mm
Core Size	430 * 638 * 16 / 26 mm
Tank Size	47 / 47 * 669 mm
DPI	1244
Core Material	Aluminum
Tank Material	Plastic

More Information

KJ-16049-PA16	MPV'91-95	PA16/AT
KJ-16049-PA26	MPV'91-95	PA26/AT
KJ-16050A-PA16	MPV'95-99	PA16/AT
KJ-16050A-PA26	MPV'95-99	PA26/AT
KJ-16051-PA16	MPV'91-95	PA16/MT
KJ-16051-PA26	MPV'91-95	PA26/MT
KJ-16052-PA16	MPV'95-99	PA16/MT
KJ-16052-PA26	MPV'95-99	PA26/MT

Question & Answer

20GP container about 450pcs
40HQ container about 1050pcs
Warranty:12 months

Structure Chart

Brazed Radiator Structure
1. Filler Neck	8. Side Plate	15. KINGA Logo
2. Top Header Plate	9. Core Height	16. Bottom Header Plate
3. Inlet Pipe	10. Fin	17. Water switch
4. Top Tank	11. Tube	18. Bottom Tank
5. Top Mounting Pins	12. Core Width	19. Oil Cooler
6. Fan Mount	13. Core Thickness	20. Outlet Pipe
7. Overflow Pipe	14. Clip

91 - 95 Mazda MPV Radiator car parts radiator JE16-15-200D , JE16-15-200E , JE77-15-200

Packing

91 - 95 Mazda MPV Radiator car parts radiator JE16-15-200D , JE16-15-200E , JE77-15-200

Packaging design according to customer requirements.

NOTICE

1. Compare your radiator to the picture below

91 - 95 Mazda MPV Radiator car parts radiator JE16-15-200D , JE16-15-200E , JE77-15-200

2. Flush the entire cooling system of the vehicle.

3. Use the astm-approved antifreeze and distilled or de-ionized water.
