OEM ODM 2001 toyota land cruiser radiator / aluminium automotive radiators

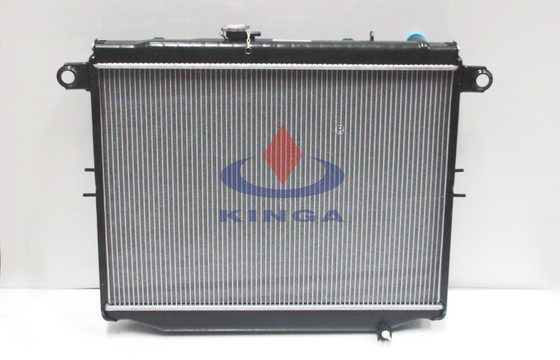

Large Image : OEM ODM 2001 toyota land cruiser radiator / aluminium automotive radiators

Product Details:

Place of Origin:	MADE IN CHINA
Brand Name:	KINGA
Certification:	ISO / TS 16949
Model Number:	KJ-12277-PA32 / PA36 / PA48

Payment & Shipping Terms:

Minimum Order Quantity:	30 PCS
Price:	Negotiation
Packaging Details:	Neutral Packing / Foam Corner Protector / Blister Packing / Cardboard Protector
Delivery Time:	45 Days
Payment Terms:	T/T L/C
Supply Ability:	600,000 PCS / Year
Price Terms:	FOB ShenZhen / GuangZhou

Contact Now

Detailed Product Description

Highlight:

toyota camry radiator

toyota corolla radiator

OEM ODM 2001 toyota land cruiser radiator / aluminium automotive radiators

Item Specifications

Car Type	LANDCRISER 2001 HDJ101K
Carton Size	875 * 160 * 680 mm
Oil cooler	Φ 34 * 390
Tank Size	69.5 / 69.5 * 721 mm
Transmission	AT
Thickness	16 mm
Core Size	510 * 698 * 32 / 36 / 48 mm
Core Material	Aluminum
Manufacturer Part Number	KJ-12277
Tank Material	Plastic

More Information

KJ-12277-PA32	LAND CRUISER'01 HDJ101K	PA32/AT
KJ-12277-PA36	LAND CRUISER'01 HDJ101K	PA36/AT
KJ-12277-PA48	LAND CRUISER'01 HDJ101K	PA48/AT
KJ-12278-PA32	LAND CRUISER'01 HDJ101K	PA32/MT
KJ-12278-PA36	LAND CRUISER'01 HDJ101K	PA36/MT
KJ-12278-PA48	LAND CRUISER'01 HDJ101K	PA48/MT

Question & Answer

20GP container about 450pcs
40HQ container about 1050pcs
Warranty:12 months

Structure Chart

Brazed Radiator Structure
1. Filler Neck	8. Side Plate	15. KINGA Logo
2. Top Header Plate	9. Core Height	16. Bottom Header Plate
3. Inlet Pipe	10. Fin	17. Water switch
4. Top Tank	11. Tube	18. Bottom Tank
5. Top Mounting Pins	12. Core Width	19. Oil Cooler
6. Fan Mount	13. Core Thickness	20. Outlet Pipe
7. Overflow Pipe	14. Clip

OEM ODM 2001 toyota land cruiser radiator / aluminium automotive radiators

Packing

OEM ODM 2001 toyota land cruiser radiator / aluminium automotive radiators

Packaging design according to customer requirements.

NOTICE

1. Compare your radiator to the picture below

OEM ODM 2001 toyota land cruiser radiator / aluminium automotive radiators

2. Flush the entire cooling system of the vehicle.

3. Use the astm-approved antifreeze and distilled or de-ionized water.
