Product Details:
Payment & Shipping Terms:
|
| Car Brand: | TOYOTA | Car Type: | CROWN 1992-1996 JZS133 AT |
|---|---|---|---|
| MT/AT: | AT | Core Size: | PA 425*648*26mm |
| Core Thickness: | 26mm | Tank Size: | 48/48*678mm |
| Carton: | 720*100*565mm | Radiator Core Type: | Tube-fin |
| Cold Style: | Water-cooled | Structure: | Open Type |
| Radiator Type: | Direct-flow | Water Temperature Sensor Type: | Switch Type |
| Export Markets: | Global | ||
| High Light: | toyota camry radiator,toyota corolla radiator |
||

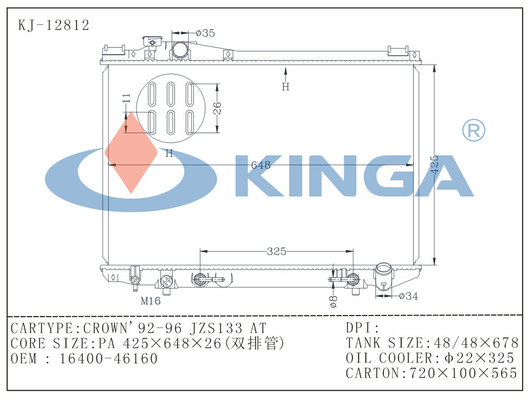

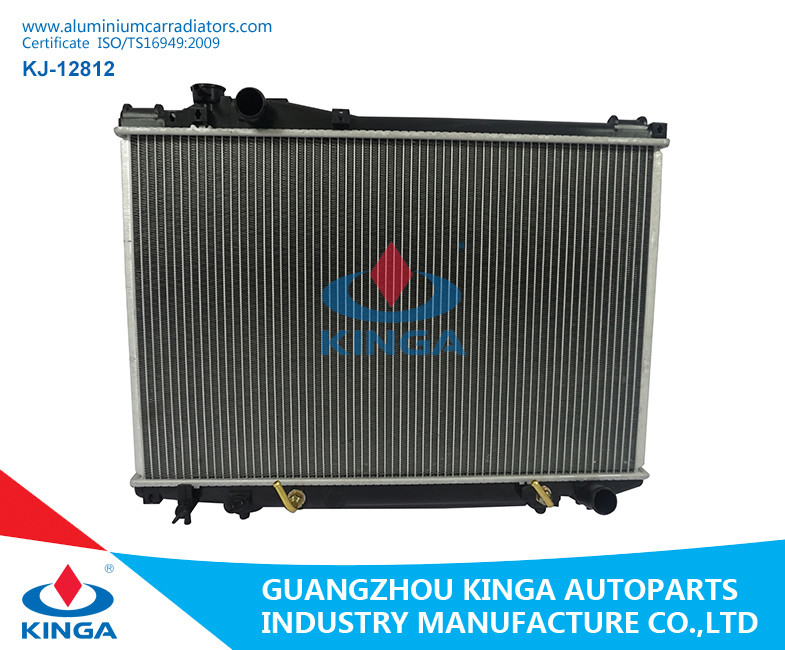

CROWN 1992-1996 JZS133 AT TOYOTA Radiators OEM 16400-46160 Material aluminum
Product details:
|
Manufacturer Part Number |
KJ - 12812 |
|
Car Brand |
TOYOTA |
|
Car Type |
CROWN 1992-1996 JZS133 AT |
|
Core Material |
Aluminum |
|
Tank Material |
Plastic |
|
Core Size |
PA 425*648*26mm |
|
Tank Size |
48/48*678mm |
|
Thickness |
26mm |
|
Carton |
720*100*565mm |
Radiator Composition:
| Filler Neck | Top Header Plate | Inlet Pipe | Top Tank | Top Mounting Pins | Fan Mount | Overflow Pipe |
| Side Plate | Core Height | Fin | Tube | Core Thickness | Core Width | Clip |
| KINGA Logo | Bottom Header Plate | Water Switch | Bottom Tank | Oil Cooler | Outlet Pipe |
Hot selling items:
| Brand | KJ NO | Cartype | OEM | Thickness |
| TOYOTA | KJ-12330A | VZN10#/11#/13#’88-95 | 16400-65040/54610 | 26/32/36mm |
| ISUZU | KJ-13001 | PICKUP DMAX’06 | 16/26mm | |
| MITSUBISHI | KJ-14098 | PICKUP L200’96 | MR127853 | 16/26/32/36mm |
| NISSAN | KJ-15268 | NISSAN QASHQAI’07 | 21400-JD900/JD90A | 26mm |
| HONDA | KJ-17060 | CIVIC’05 FAI | 19010-PNB-A01/C01 | 16/26mm |
| SUZUKI | KJ-18029 | SUZUKI ALTO’94- | 17700-60D40/60D41/70G10 | 16/26mm |
| HYUNDAI | KJ-21087 | SANTAFE’07 | 25310-2B100 | 16/26mm |
| FORD | KJ-31054 | FORD TRANSIT 2.2 TDCI’06 | 1373156/1383317/6C118005CD6C118005CA/6C118005CB | 26mm |
| RENAULT | KJ-51001 | KANGOO’97-1.9D | 7700301171/8200330848 | 32mm |
About KINGA:
1.KINGA is almost the biggest radiator and condenser factory in South China
which had shipped the goods to all over the world for more than 20 years.
2. KINGA have the radiator/condenser/mold/board punching/tank injection workshop
So we can have good control on the cost/quality and delivery date.
3. We have strict quality control system to keep each radiator/condenser standardized.
4. All of our radiator have got great reputation in international market.
5. Use good material, we produce pipe, fin, plastic tank, mother baord, side baord ourselves.
