Product Details:
Payment & Shipping Terms:
|
| CARTYPE: | Toyota Cressida'92-94 GX90 At | MATERIAL: | PLASTIC |
|---|---|---|---|

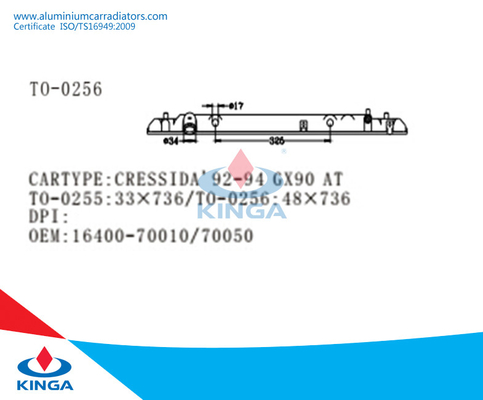

| TANK SIZE: | 48 * 736mm | POSITION: | BOTTOM TANK |
| OUTLET SIZE: | Diameter 34mm | CORE SIZE: | PA 400*708*16 Mm |
| POL: | SHENZHEN / GUANGZHOU | Cold Style: | Water-cooled |
| Cooling Fluid Type: | ALCOHOL | Transmission: | AT |
| COLOR: | BLACK | OEM: | 16400-70010 / 70050 |
| OIL COOLER: | Diameter 22*325 Mm | ||
| High Light: | radiator top tank replacement,plastic radiator tank |
||

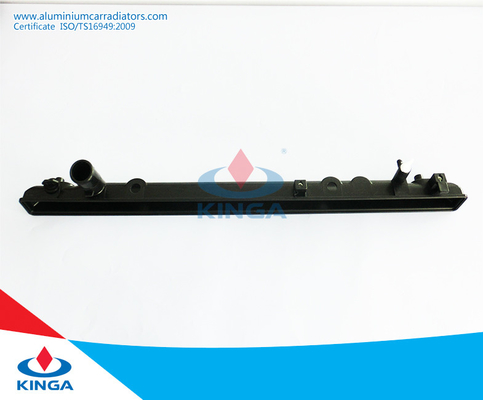

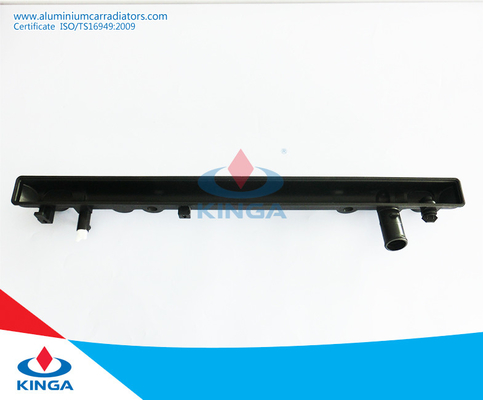

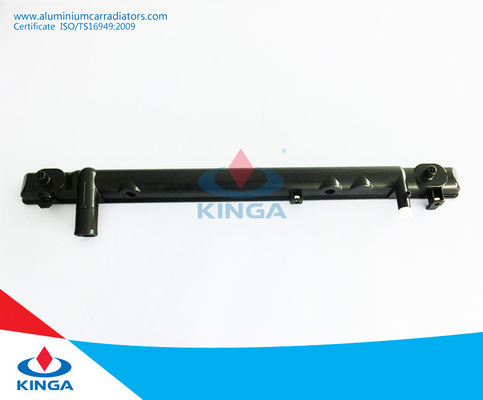

Plastic Bottom Tank For Radiator Toyota Cressida'92-94 GX90 At OEM: 16400-70010 / 70050
Product Description
| Materials | PA66+GF30% |
| Make type | GM |
| Thickness | ≥1.5mm |
| Resistance | Heat, corrosion, anti-vibration |
| Character | Good hot and cold denaturation, sealing performance. |
Radiator plastic tank technical specification:
| Description | PA66 | Grade | 01 | |
| Test standards | ISO,UL,IEC,ASTM | Handling | 23°C-24h | Environment |
| Properties | Test method | Unit | Typical values | |
| Tensile strength | ASTM D-638 | Mpa | 121.46 | |
| Elongation at break | ASTM D-638 | % | 11.02 | |
| Flexural strength | ASTM D-790 | Mpa | 208.79 | |
| Bending modulus | ASTM D-790 | Mpa | 6841.023 | |
| Izod notched impact strength | ASTM D-256 | KJ/m2 | 62.011 | |
| Charpy unnotched impact strength | ASTM D-256 | KJ/m2 | 14.584 | |
| Heat deflection temperature(18.6Kgf/cm2) | ASTM D-648 | °C | 245 | |
| Ashy | ASTM D-482 | % | 33 | |
| Shrinkage | ASTM D-955 | % | 0.55 | |
| Density | ASTM D-792 | g/cm3 | 1.41 | |
| Flammability | UL-94 | Class | HB | |
How about our quality control
Three key quality control points are set up according to the most concerns of customers: first is core quality control, second is leakage testing control, and the third is dimension, accessories and appearance inspection before packing.
What's radiator plastic tank in a vehicle cooling system
Auto radiator plastic tank are made from modified engineering plastic PA66 with 30% glassfiber by injection molding, radiator plastic tanks are a main spare parts of vehicle cooling system which composed by three parts:inlet & outlet radiator plastic tanks,header plate,radiator core.The flow of coolant in the radiator core became cold for transfering the heat to air, while the air became hot getting the heat from radiator.so the radiator is a heatexchanger.
Why you should choose Us:
· We can promise you a very short delivery time ( 15-20 days )
· We are Manufacturer and can offer you direct price
· We are more than 10 yeas experiences on this subject
· We are honest suppliers in China.You will save more time, work and risk if you work with us.
· We have good after-sale service
· We have well-trained & experienced staff are to answer all your inquiries
· We have gain high reputation among our customers
Your business relationship with us will be confidential to any third party.
Let's see its shipping information.
1. Fedex/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
Further more, we do not only offer you radiator tanks with good quality and best price, but also would like to be your friend and to provide you good aftermarket service.
