2006 SX4 AT Suzuki Car Auto Radiator With Plastic Tank 17700 - 80J10 DPI 2980

Good quality Toyota Radiator for sales
Good quality Toyota Radiator for sales
We have been clients of Kinga for over 6 years. Their radiator product is second to none, a very professional business. A very friendly team, with exceptional customer care, we wouldn't think of going to anyone else for all of our product needs. As the saying goes “Forget the rest when you already have the Best”. We would highly recommend Kinga.

—— Mr Anand from Kuwait

KINGA it's a professional manufacturer,good quality、good service and goo price! I order a 20ft container this time. I will order with Kinga again.

—— Mr Bilaal bhana

It is a pleasant experience to cooperate with KINGA.They are fast-reacted and offer good and stable-quality products. I just need to wait my ship now.

—— Mr Henri Torbey from USA

They are very professional and have a great service. Thanks for their supporting for my urgent order. The VVO package is beautiful with good quality.

—— Mr John Brown from Dubai

Je suis heureux de faire une affaire de radiateur avec Kinga à nouveau. Je commande 48 ft cette fois. La plupart de leurs produits se vend très bien.

—— Guy Mollet de Paris

I'm Online Chat Now

2006 SX4 AT Suzuki Car Auto Radiator With Plastic Tank 17700 - 80J10 DPI 2980

China 2006 SX4 AT Suzuki Car Auto Radiator With Plastic Tank 17700 - 80J10 DPI 2980 supplier
2006 SX4 AT Suzuki Car Auto Radiator With Plastic Tank 17700 - 80J10 DPI 2980 supplier 2006 SX4 AT Suzuki Car Auto Radiator With Plastic Tank 17700 - 80J10 DPI 2980 supplier 2006 SX4 AT Suzuki Car Auto Radiator With Plastic Tank 17700 - 80J10 DPI 2980 supplier 2006 SX4 AT Suzuki Car Auto Radiator With Plastic Tank 17700 - 80J10 DPI 2980 supplier 2006 SX4 AT Suzuki Car Auto Radiator With Plastic Tank 17700 - 80J10 DPI 2980 supplier 2006 SX4 AT Suzuki Car Auto Radiator With Plastic Tank 17700 - 80J10 DPI 2980 supplier

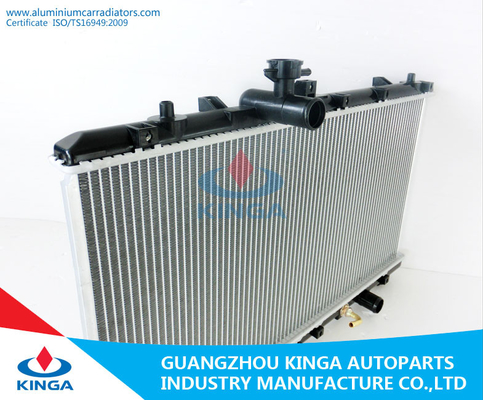

Large Image :  2006 SX4 AT Suzuki Car Auto Radiator With Plastic Tank 17700 - 80J10 DPI 2980

Product Details:

Place of Origin: Guangzhou, China Mainland
Brand Name: Kinga
Certification: ISO9001:2000,ISO/TS16949
Model Number: KJ-18051

Payment & Shipping Terms:

Minimum Order Quantity: 30PCS
Price: Can negotiate
Packaging Details: Neutral packing / Foam Corner Protector / Blister Packing / Cardboard Protector
Delivery Time: 30-40 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 70,000pcs/Months
Contact Now
Detailed Product Description
Manufacturer Part Number: KJ-18051-PA16 / PA26 Component: Suziki Radiator
Cold Style: Water-cooled Structure: Seal Type
Radiator Type: Cross-flow Radiator Core Type: Tube-fin
Water Temperature Sensor Type: Switch Type Cooling Fluid Type: Alcohol
Cooling Fluid Brand: TOTAL Car Type: SX4'06

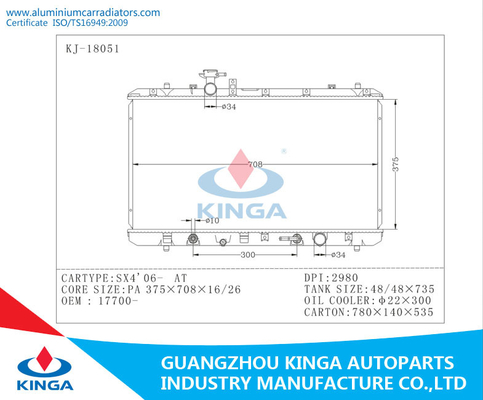

Core Size: PA 375*708*16/26mm Tank Size: 48/48*735mm
Core Material: Aluminum Tank Material: Plastic
Transmission: AT OEM: 17700-80J10
Carton Size: 780*140*535mm Thickness: 16 / 26 Mm
Payment Term: 30% Deposit Balance Before Shipment Export Markets: Global
DPI: 2980 Oil Cooler: Diameter 22*300mm
Inlet/Outlet Size: Diameter 34mm

ZL05-15-200 Auto Car Cooling Radiator For  Mazda FML 2003 MT

Detailed Product Description




Specification

Product Model

KJ-18051-PA16 / PA26

Car Brand

SX4'06  AT

OEM

17700-80J10

Material

Aluminum body

Cooling Type

Water-cooled

Core Dimensions

(mm)

PA 375*708*16/26mm

Tank  (Dimensions

mm)

48/48*735mm


Features

Fin Type

 Wavy Fin

Core

high strength, high heat conductivity,high safety coefficient

cleaning

High efficiency,little corrosion to metal , few pollution

brazing

Strict control of degree, temperature and time

Tank

Tank Made of Reinforced Heat and Wearing Resisting PA66 Material



Test

Every Radiator will be test by air-tight test and Pressure Text,

0.15Mpa/min


Specifications


1. High quality auto radiator
2. Factory manufacturer
3. 100% fully tested in house
4. One year warranty
5. Different size & model available
6. OEM available;

7. Prompt delivery



Product  processing

All the products are tested in house which is stricter than industry standard.Every processing step
will have the QC to check if the item reach the standard or not. We have certifications for ISO900,TS16949.
When the radiator was finished,we will test it by Precision Leak Equipment.



The step
Fin Production → Ultrasonic wave wash → Core assembling → Core brazing → Spare parts machining →
 Leakage&pressure → Packaging







Product application

Our products used for Auto Car and also involved in other area like heavy Trucks racing car,
air compressors and any other racing cars. Over 3,000 kinds of radiators can fit most of the car.


Suziki Radiato catalogue for some



Part NO.

OEM

Car type

item name

KJ-18001

17700-54G10

LIANA/AERIO'01-04 AT

Suzuki Radiator

KJ-18002

17700-54G00

LIANA/AERIO'01-04 MT

Suzuki Radiator

KJ-18003

17700-54G20

LIANA/AERIO'02-07 AT

Suzuki Radiator

KJ-18004

17700-

LIANA/AERIO'02-07 MT

Suzuki Radiator

KJ-18005

17700-60G10

CULTUS/SWIFT GA11'95- AT

Suzuki Radiator

KJ-18006

17700-60G00

CULTUS/SWIFT GA11'95- MT

Suzuki Radiator

KJ-18007

17700-63G11/63G12

CALTUS WAGON G15'96-02 AT

Suzuki Radiator

KJ-18008A

17700-63G00/63G20

CALTUS WAGON G15'96-02 MT

Suzuki Radiator

KJ-18009A

17700-52D00

GRAND VITARA'01 MT

Suzuki Radiator

KJ-18010

17700-52D10/52D20

GRAND VITARA'01 AT

Suzuki Radiator

KJ-18011



IGNIS'03 MT

Suzuki Radiator

KJ-18012A



IGNIS'03 AT

Suzuki Radiator

KJ-18013A

17700-63J10

SWIFT'05 AT

Suzuki Radiator

KJ-18014A

17700-63J00

SWIFT'05 MT

Suzuki Radiator

KJ-18015A

17700-

ESCUDO/GRAND VITARA'05 AT

Suzuki Radiator

KJ-18016A

17700-67J00

ESCUDO/GRAND VITARA'05 MT

Suzuki Radiator

KJ-18017A

17700-

ESCUDO/GRAND VITARA'05 AT

Suzuki Radiator

KJ-18018A

17700

ESCUDO/GRAND VITARA'05 MT

Suzuki Radiator

KJ-18019A

17700-

VITARA'88-97 TA01 G16A AT

Suzuki Radiator

KJ-18020A

17700-56B10/56B12

VITARA'88-97 TD01 AT

Suzuki Radiator

KJ-18021

17700-60A00/60A11/60A12
17700-85C01

VITARA'88-97 TA01 G16A MT

Suzuki Radiator

KJ-18022



VITARA'88-97 TD01 MT

Suzuki Radiator

KJ-18023

17700-86CB0

VITARA'96 MT

Suzuki Radiator

KJ-18024

17700-78E00

VITARA'96 AT

Suzuki Radiator

KJ-18025

17700-71C11

SWIFT'91- AT

Suzuki Radiator



Our Company

Guangzhou Kinga Auto parts Manufacture Co.,Ltd.





Our factory is specializing in the manufacture and export of radiator& condenser&auto parts&hardware

 for more than 20 years. For those years,Our Factory continue to expand fast.The employees are over

400 and we can produce the radiator to 70,000PCS/months.The warehouse can have six containers

at the same time.Nowday,our service is more appreciation.The price is more  Reasonable,

the quality is good durability and stability.The kinds of radiator and condenser have over 3,000 kinds.



What service we can offer?



OEM Service : Customers simply provide OEM number,Car brand,then we can do the radiator  for you.
Team Support : Professional design team and technology team provide 24 hours service and one Year  Warranty
Factory Support : Accept sample order, economical and practical.



More service :
1) We can help buyers design specific products or produce products according to buyers' design.

2) We can print logo according to buyers' requirement.

3) We has exported to many countries, such as Korea, USA, German, Turkey, Russia, Mexico, etc.

4) After we ship the goods, we will email you the shipping information, as well as tracking number.

5) One year's warranty against B/L loading date. If you meet with quality problem, we promise to replace  goods





Trade information



Trade Terms

FOB ShenZhen

Payment Terms

L/C T/T, Western Union

Payment Condition

30% deposit in advance, 70% balance before delivery

Delivery Time

30-40 working days after Money received

Packing

Neutral packing / Foam Corner Protector /

Blister Packing / Cardboard Protector

Shipping

By sea





More information



Contact person

Summer Chen

Phone

86-20-87810068/0086 13570069921

QQ

3227209054

Company

Guangzhou Kinga Auto parts Manufacture Co.,Ltd.

Website

http://www.aluminiumcarradiators.com/

Add

NO.18, Guangcong Road, Conghua economic development



Our factory whole picture

2006 SX4 AT Suzuki Car Auto Radiator With Plastic Tank 17700 - 80J10 DPI 2980


Our Radiator workshop

2006 SX4 AT Suzuki Car Auto Radiator With Plastic Tank 17700 - 80J10 DPI 2980

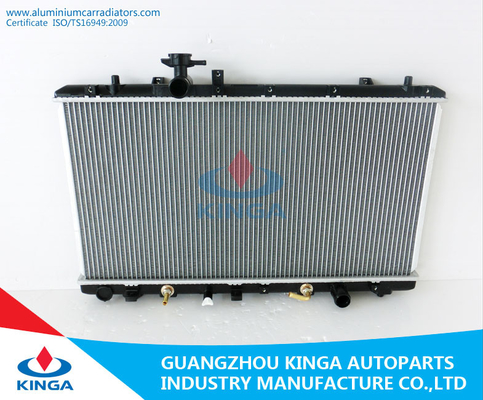

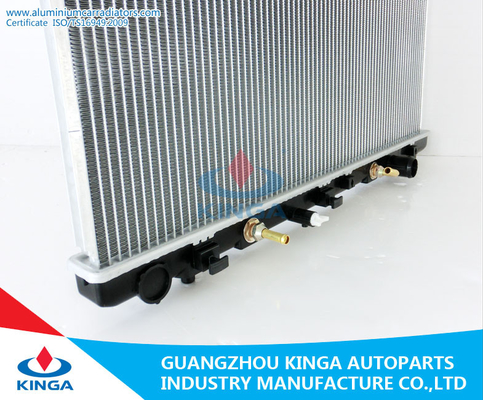

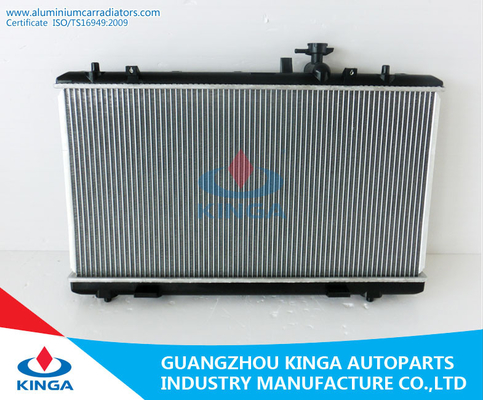

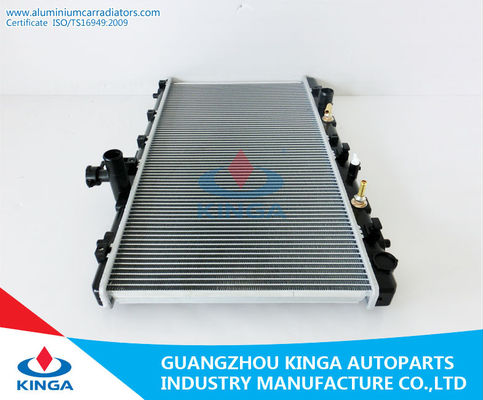

The finished radiator,so nice, give your car a cooling condition!



2006 SX4 AT Suzuki Car Auto Radiator With Plastic Tank 17700 - 80J10 DPI 2980
