Product Details:
Payment & Shipping Terms:
|
| Product Name: | Radiator | Car Type: | Hyundai Radiator |
|---|---|---|---|
| Core Size: | PA 355 * 378 * 16 / 26 Mm | Tank Size: | 44 / 44 * 407 Mm |
| OEM: | 25310-07552 | IPlace Of Origin: | Guangzhou China ( Mainland ) |
| CARTON: | 785 * 145 * 585 Mm | ||
| High Light: | aluminum auto radiator,high performance aluminum radiators |
||

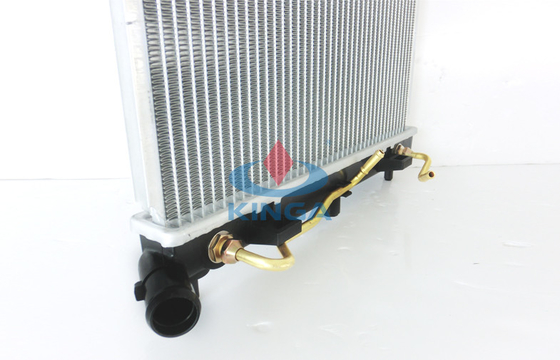

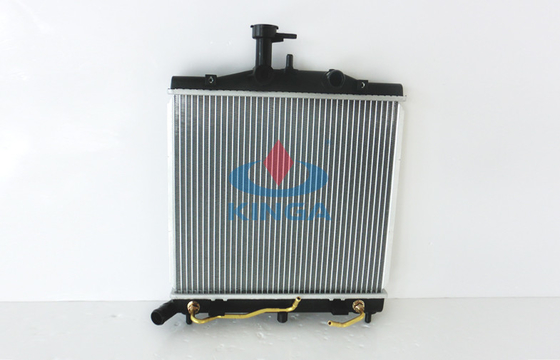

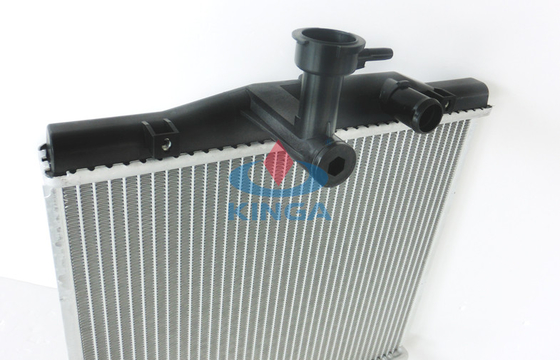

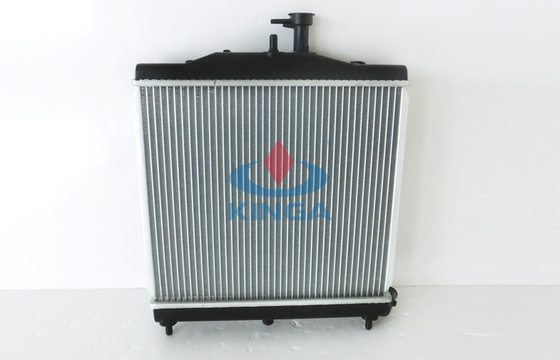

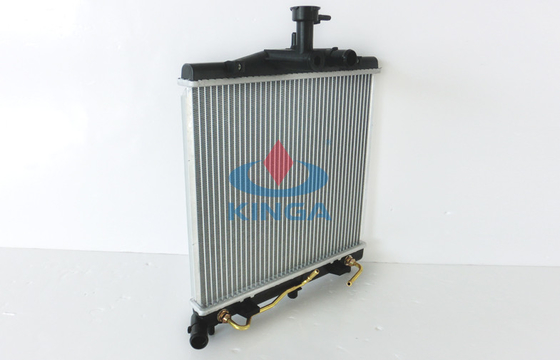

Used car radiators for Hyundai KIA PICANTO'10-AT
Our Advantages
1. Efficiency : Any inquiry or email will be replied within 24 hours .
2. Profession: Over 20 years experience technical and sales support team can offer you the best service .
3. Delivery : 15-20 days for one container .
4. Guaranty : Strict quality control through our quality control team , one year warranty against BL date ,
any leakage will replace or return by money .
5. High quality and competitive price : We are using high quality materials , we have advanced production
equipment , strict requirements for production , good price .
A Large Number of Radiators Supply
Peugeot 307 |
KJ - 50012 - PA16 / 22 / 26 |
PA16 / 22 / 26 MT |
Hyundai KIA PICANTO ' 10 |
KJ - 21152A - PA16 / 26 |
PA16 / 26 MT |
Suzuki VITARA ' 88 - 97 TA01 G16A |
KJ - 18019A - PA16 / 26 |
PA16 / 26 AT |
Mitsubishi PICKUP L200 ' 98 |
KJ - 14094 - PA16 / 26 / 32 / 36 |
PA16 / 26 / 32 / 36 MT |
Toyota COROLLA 01-04 ZZE122 |
KJ - 12165 - PA16 / 26 |
PA16 / 26/ AT |

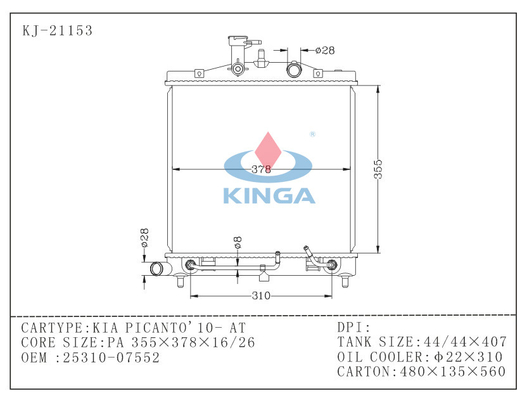

About Product
Manufacturer Part Number : KJ-21153-PA16/26
Core Size : PA 355 * 378 * 16 / 26 Mm
Tank Size : 44 / 44 * 407 Mm
Oil Cooler : Φ 22 * 310 mm
Quality Control : ISO9001 : 2000 , TS16949 certification
OEM : 25310-07552
Core Material : Aluminium
Carton Size : 480 * 135 * 560 mm
Warranty : 1 Year
General Radiator Structure
Brazed |
||
1. Filler Neck |
8. Side Plate |
15. KINGA Logo |
2. Top Header Plate |
9. Core Height |
16. Bottom Header Plate |
3. Inlet Pipe |
10. Fin |
17. Water switch |
4. Top Tank |
11. Tube |
18. Bottom Tank |
5. Top Mounting Pins |
12. Core Width |
19. Oil Cooler |
6. Fan Mount |
13. Core Thickness |
20. Outlet Pipe |
7. Overflow Pipe |
14. Clip |
|
Pay Attention
1. Radiators , water to water injection in full , on the water to the engine cylinder body of the switch
is turned on , the water out , again close , so as to avoid blisters .
2. In the process of installation radiator , please do not damage the scattered tropical ( film ) and the
radiator , bruised to ensure the cooling capacity and seal .
3. In the winter to prevent ice core fracture phenomenon , such as long - term parking or indirectly ,
should be on the water tank cover and switch , all the water out .
4. Users according to actual situation should be between 1 to 3 months to completely clean the radiator
core body at a time.When cleaning , along the counter in the direction of the wind side rinse with water .
5. Water level gauge should be cleaned once every 3 months or according to actual situation , all the
parts to be removed with warm water and not corrosive detergent to clean .
