Cartype: | HILUX LN147 / LN8 # /9 # / 10 # / 11 | Core Size: | PA 450 * 528 * 26 / 32 / 36 Mm |
---|---|---|---|
Tank Size: | 54.5 / 54.5 * 545 Mm | Core Thickness: | 26 / 32 / 36 Mm |
AT / MT: | MT | Place Of Origin: | Guangzhou China ( Mainland ) |
OEM: | 16400 - 5B590 | ||
High Light: | toyota radiator replacement,toyota camry radiator |

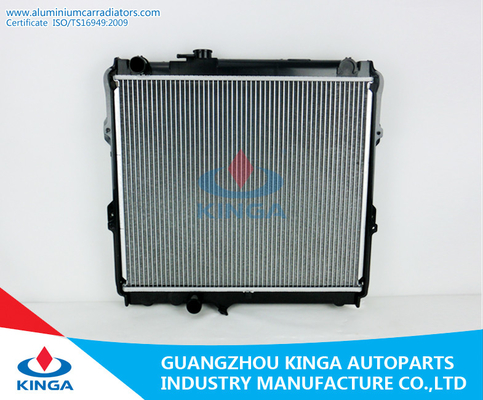

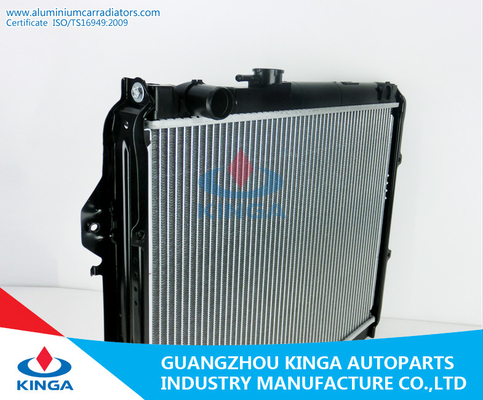

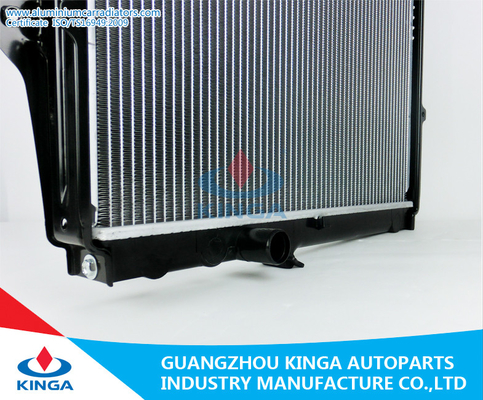

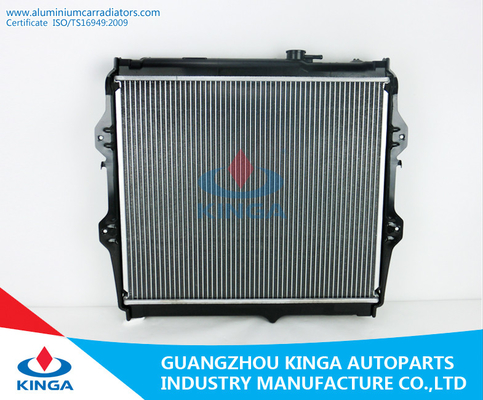

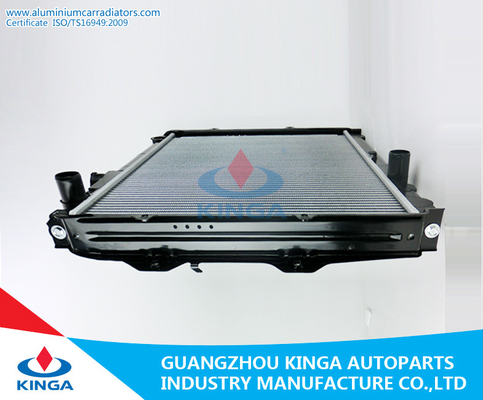

OEM 16400 - 5B590 Toyota HILUX Radiator for HILUX LN147 / LN8 # /9 # / 10 # / 11
Our Major Advantages
① Professional Factory : Specializing in manufancturing heat transfer system for over 10 years .
② Work Team : More than 400 workers , including a professional technical team .
③ Wide Use : Over 5000 kinds of products , which exported all over the world .
④ Rapid Response : We will reply within 24 hours after receive your letter.
⑤ Efficient Service : Competitive price with best quality and excellent reputation .
Radiators Supply
Peugeot 307 |
KJ - 50012 - PA16 / 22 / 26 |
PA16 / 22 / 26 MT |
Hyundai KIA PICANTO ' 10 |
KJ - 21152A - PA16 / 26 |
PA16 / 26 MT |
Suzuki VITARA ' 88 - 97 TA01 G16A |
KJ - 18019A - PA16 / 26 |
PA16 / 26 AT |
Mitsubishi PICKUP L200 ' 98 |
KJ - 14094 - PA16 / 26 / 32 / 36 |
PA16 / 26 / 32 / 36 MT |
Toyota COROLLA 01-04 ZZE122 |
KJ - 12165 - PA16 / 26 |
PA16 / 26/ AT |
Product Information
Core Material : Aluminium
Manufacturer Part Number : KJ - 12326A - PA 26 / 32 / 36
Core Size : PA 450 * 528 * 26 / 32 / 36 mm
Tank Size : 54.5 / 54.5 * 545 mm
Quality Control : ISO9001 : 2000 , TS16949 certification
OEM : 16400 - 5B590
Carton Size : 640 * 135 * 605 mm
Radiator Structure
Brazed Radiator |
||
1. Filler Neck |
8. Side Plate |
15. KINGA Logo |
2. Top Header Plate |
9. Core Height |
16. Bottom Header Plate |
3. Inlet Pipe |
10. Fin |
17. Water switch |
4. Top Tank |
11. Tube |
18. Bottom Tank |
5. Top Mounting Pins |
12. Core Width |
19. Oil Cooler |
6. Fan Mount |
13. Core Thickness |
20. Outlet Pipe |
7. Overflow Pipe |
14. Clip |
|
Notice
1) Please Compare your radiator to the picture below .
2) Flush the entire cooling system of the vehicle .
3) Aluminium Auto Radiator should not contact with any acid , alkali or other corrosive properties .
