Product Details:
Payment & Shipping Terms:
|
| Type: | FIT ' 2009 GE6 / GE8 | OEM: | 19010 - RC3 - H51 |
|---|---|---|---|
| AT/MT: | AT | Core Size: | PA 350 * 728 * 16 |
| Tank Size: | 34 / 39.5 * 742 | Place Of Origin: | Guangzhou China ( Mainland ) |
| High Light: | honda accord radiator,honda civic aluminum radiator |
||

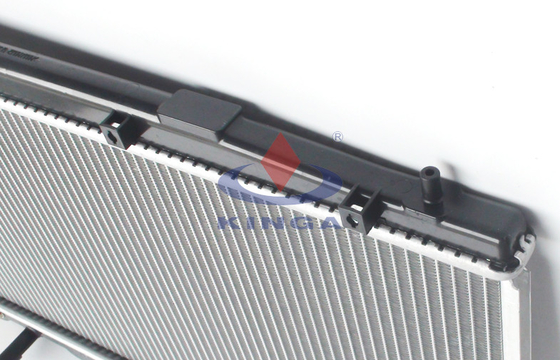

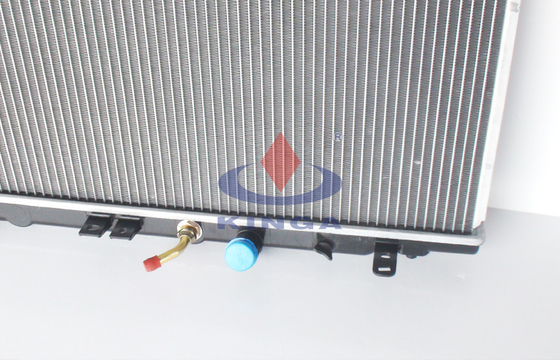

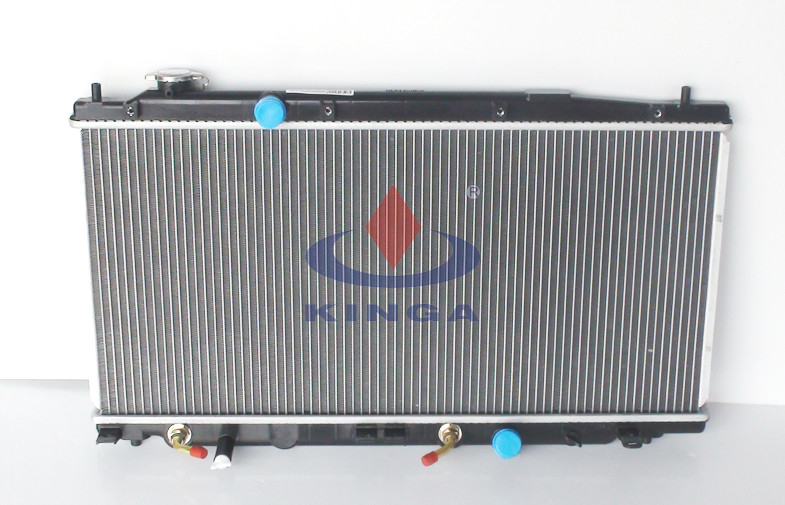

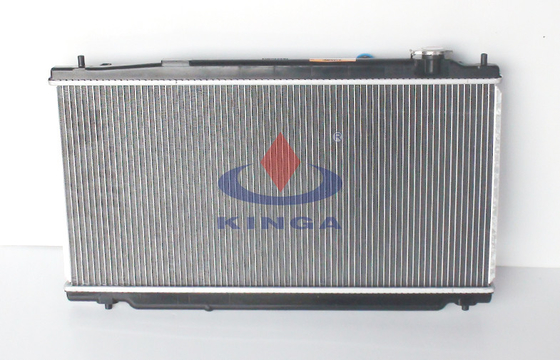

OEM 19010 - RC3 - H51 Honda Aluminum Radiators FIT ' 2009 GE6 / GE8 PA16 / AT
Detailed Product Description
|
Oil Cooler |
Φ 22 * 325 mmmm |
|
Car Type |
FIT ' 2009 GE6 / GE8 |
|
Core Size |
PA 350 * 728 * 16 mm |
|
Tank Size |
34 / 39.5 * 742 mm |
|
Thickness |
16 mm |
|
Core Material |
Aluminium |
|
Manufacturer Part Number |
KJ - 17121 - PA16 |
|
Carton Size |
790 * 110 * 485 |
our advantage
Professional team :
More than 10 years Technical and Sales Support team offer you the best service.
Perfect After-sale Service :
We support one-year quality guarantee after you receive the goods.
Competitive Products :
Keep close attention on new vehicles every year and develop the new parts in the shortest time.
Wide Use :
Over 5000 kinds of products , which exported all over the world .
Friendly Ideas :
We can be friends , and we do our best to make every friend ’ s business success.
Radiator Structure Chart
|
Brazed Radiator Structure |
||
|
1. Filler Neck |
8. Side Plate |
15. KINGA Logo |
|
2. Top Header Plate |
9. Core Height |
16. Bottom Header Plate |
|
3. Inlet Pipe |
10. Fin |
17. Water switch |
|
4. Top Tank |
11. Tube |
18. Bottom Tank |
|
5. Top Mounting Pins |
12. Core Width |
19. Oil Cooler |
|
6. Fan Mount |
13. Core Thickness |
20. Outlet Pipe |
|
7. Overflow Pipe |
14. Clip |
|
Paying Attention
1. Radiator should not contact with any acid , alkali or other corrosive properties .
2. It is recommended to use soft water , hard water softening treatment after use , avoid to cause the
radiator internal blockage and scale production .
3. Radiators , water to water injection in full , on the water to the engine cylinder body of the switch is
turned on , the water out , again close , so as to avoid blisters .

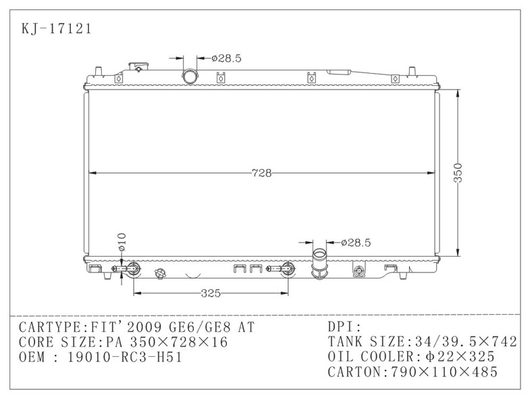

Design drawing
Compare your radiator to the picture below .
