Auto Aluminum Suzuki Radiator Form KINGA , ESCUDO / GRAND VIARA ' 2005

China Auto Aluminum Suzuki Radiator Form KINGA , ESCUDO / GRAND VIARA ' 2005 supplier
Auto Aluminum Suzuki Radiator Form KINGA , ESCUDO / GRAND VIARA ' 2005 supplier Auto Aluminum Suzuki Radiator Form KINGA , ESCUDO / GRAND VIARA ' 2005 supplier Auto Aluminum Suzuki Radiator Form KINGA , ESCUDO / GRAND VIARA ' 2005 supplier Auto Aluminum Suzuki Radiator Form KINGA , ESCUDO / GRAND VIARA ' 2005 supplier

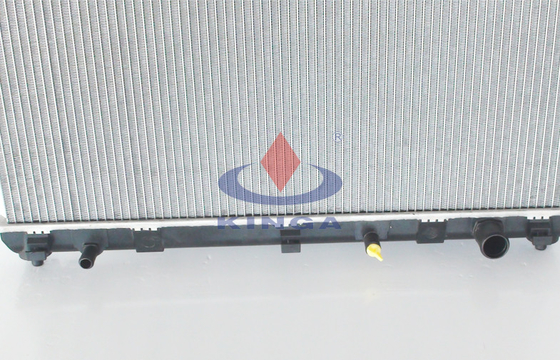

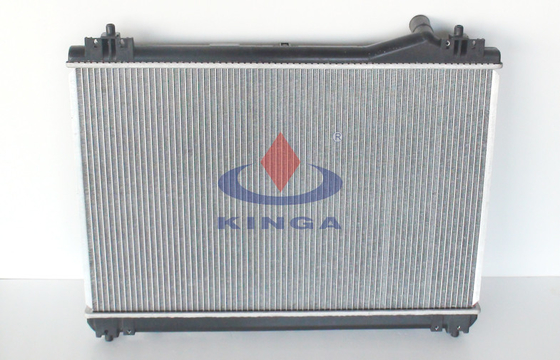

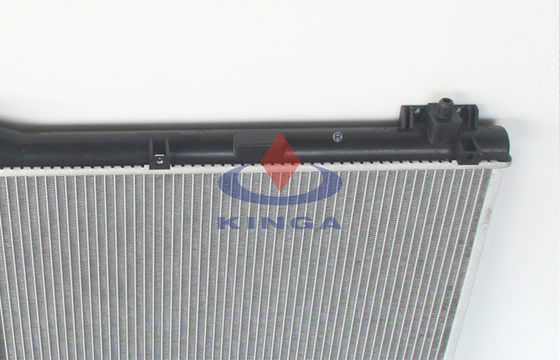

Large Image :  Auto Aluminum Suzuki Radiator Form KINGA , ESCUDO / GRAND VIARA ' 2005

Product Details:

Place of Origin: MADE IN CHINA
Brand Name: KINGA
Certification: ISO / TS 16949
Model Number: KJ-18018A-PA16 / 26

Payment & Shipping Terms:

Minimum Order Quantity: 30PCS
Price: Negotiation
Packaging Details: Neutral Packing / Foam Corner Protector / Blister Packing / Cardboard Protector
Delivery Time: 45 Days
Payment Terms: T/T L/C
Supply Ability: 600,000 PCS / Year
Price Terms: FOB ShenZhen / GuangZhou
Contact Now
Detailed Product Description

Auto Aluminum Suzuki Radiator Form KINGA , ESCUDO / GRAND VIARA ' 2005​





Item Specifications



Manufacturer Part Number KJ-18018A
Car Type ESCUDO / GRAND VIARA ' 2005
Carton Size 760 * 100 * 625 mm
Transmission MT
Thickness 16 / 26 mm
Core Size 450 * 688 * 16 / 26 mm
Tank Size 48 / 48 * 717 mm
Core Material Aluminum
Tank Material Plastic





More Information



KJ-18019A-PA16 VITARA'88-97 TA01 G16A PA16/AT
KJ-18019A-PA26 VITARA'88-97 TA01 G16A PA26/AT
KJ-18020A-PA16 VITARA'88-97 TD01 PA16/AT
KJ-18020A-PA26 VITARA'88-97 TD01 PA26/AT
KJ-18021-PA16 VITARA'88-97 TA01 G16A PA16/MT
KJ-18021-PA26 VITARA'88-97 TA01 G16A PA26/MT
KJ-18022-PA16 VITARA'88-97 TD01 PA16/MT
KJ-18022-PA26 VITARA'88-97 TD01 PA26/MT



Question & Answer



20GP container about 450pcs
40HQ container about 1050pcs
Warranty:12 months





Structure Chart



Brazed Radiator Structure
1. Filler Neck 8. Side Plate 15. KINGA Logo
2. Top Header Plate 9. Core Height 16. Bottom Header Plate
3. Inlet Pipe 10. Fin 17. Water switch
4. Top Tank 11. Tube 18. Bottom Tank
5. Top Mounting Pins 12. Core Width 19. Oil Cooler
6. Fan Mount 13. Core Thickness 20. Outlet Pipe
7. Overflow Pipe 14. Clip





Packing



Auto Aluminum Suzuki Radiator Form KINGA , ESCUDO / GRAND VIARA ' 2005



Packaging design according to customer requirements.





NOTICE

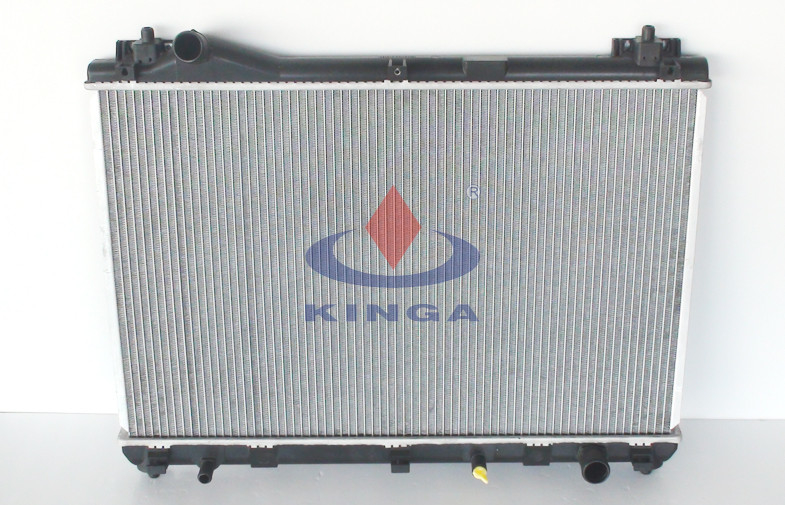

1. Compare your radiator to the picture below

Auto Aluminum Suzuki Radiator Form KINGA , ESCUDO / GRAND VIARA ' 2005

2. Flush the entire cooling system of the vehicle.

3. Use the astm-approved antifreeze and distilled or de-ionized water.
