High Light: | auto radiator,auto parts radiator |
---|

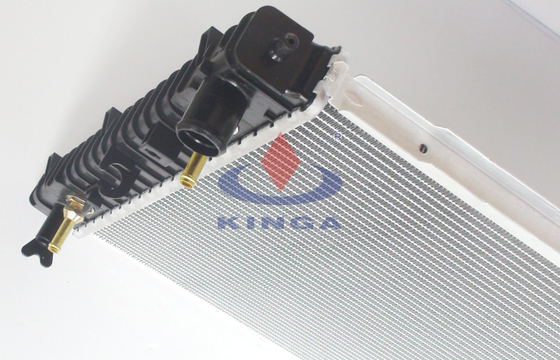

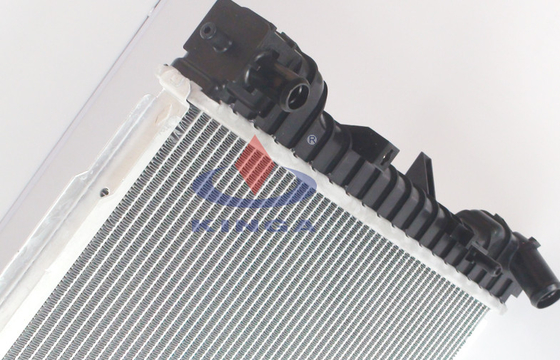

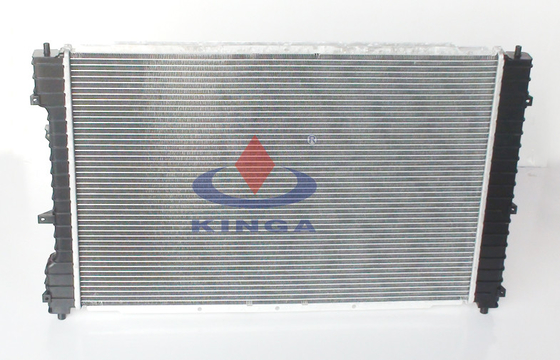

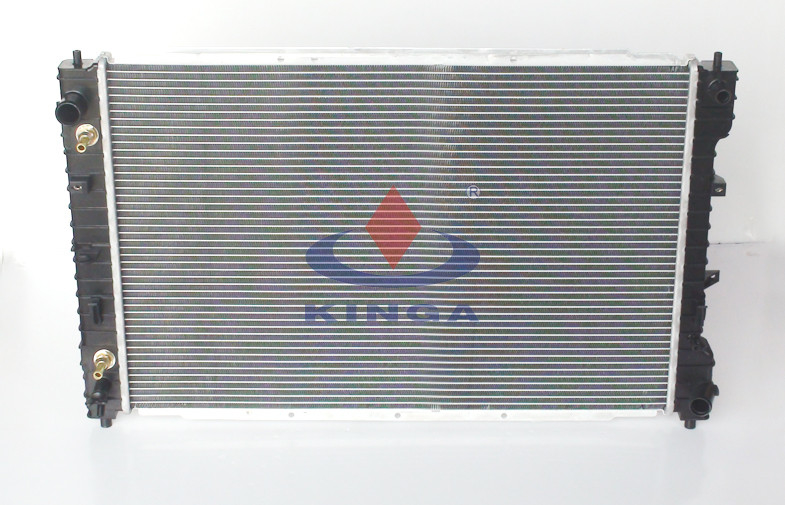

HAIMA 7 ' 2010 , 2012 Mazda Radiator , High performance cooling radiators
Item Specifications
Manufacturer Part Number | KJ-16135 |
Car Type | HAIMA 7 2010 , 2011 , 2012 |
Carton Size | 870 * 105 * 550 mm |
Transmission | AT |
Thickness | 26 mm |
Core Size | 700 * 468 * 26 mm |
Tank Size | 47 / 47 * 479 mm |
Core Material | Aluminum |
Tank Material | Plastic |
More Information
KJ-16135-PA16 | HAIMA 7 '10-12 | PA16/AT |
KJ-16135-PA26 | HAIMA 7 '10-12 | PA26/AT |
KJ-16136-PA26 | HAIMA 7 '10-12 | PA26/MT |
Question & Answer
20GP container about 450pcs
40HQ container about 1050pcs
Warranty:12 months
Structure Chart
Brazed Radiator Structure | ||
1. Filler Neck | 8. Side Plate | 15. KINGA Logo |
2. Top Header Plate | 9. Core Height | 16. Bottom Header Plate |
3. Inlet Pipe | 10. Fin | 17. Water switch |
4. Top Tank | 11. Tube | 18. Bottom Tank |
5. Top Mounting Pins | 12. Core Width | 19. Oil Cooler |
6. Fan Mount | 13. Core Thickness | 20. Outlet Pipe |
7. Overflow Pipe | 14. Clip |
Packing
Packaging design according to customer requirements.
NOTICE
1. Compare your radiator to the picture below
2. Flush the entire cooling system of the vehicle.
3. Use the astm-approved antifreeze and distilled or de-ionized water.
