Product Details:
Payment & Shipping Terms:
|
| Car Type: | ACM21 / ACM26 ' 26 01 - 04 | Core Material: | Aluminum |
|---|---|---|---|
| OEM: | 16400-37220 | Inlet Size: | Diameter 34mm |
| Inlet Location: | Top Left | Core Size: | 425 * 728 * 16 / 26 / 32mm |
| Core Thickness: | 16 / 26 / 32mm | Tank Size: | 48 / 48 *756 Mm |
| Tank Material: | Plastic | Oil Cooler: | 22*375mm |
| High Light: | toyota camry radiator,toyota corolla radiator |
||

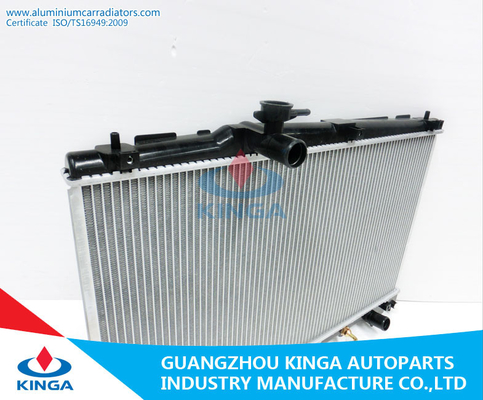

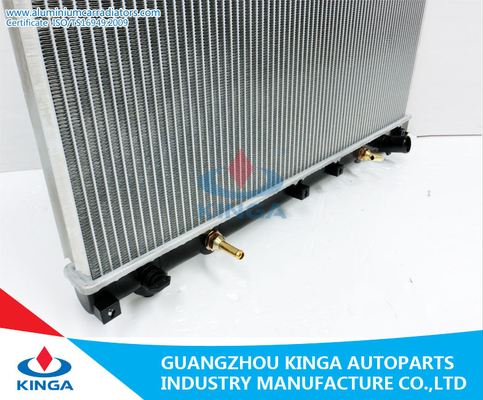

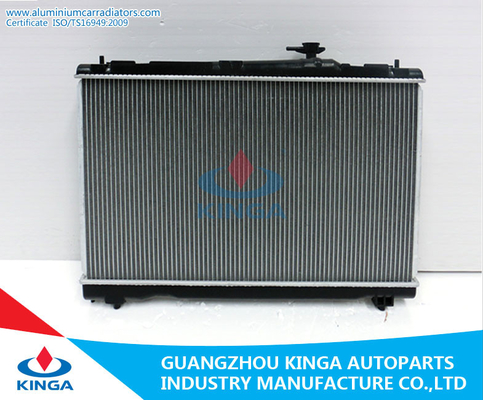

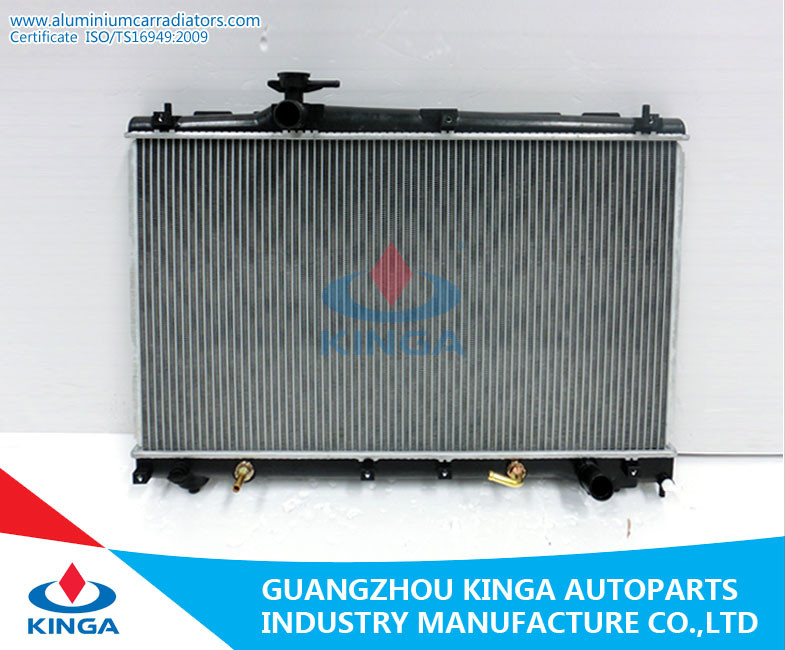

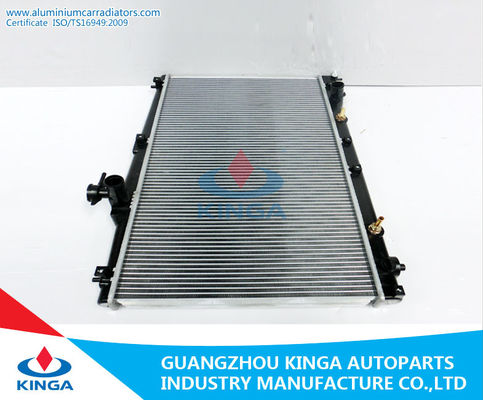

ACM21 / ACM26 2001 , 2003 , 2004 Toyota Aluminium Radiator OEM 16400-37220

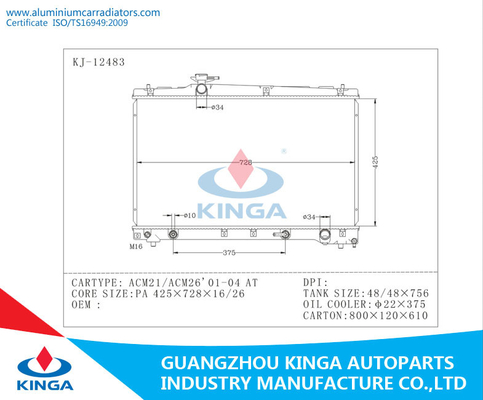

Item Specifications
| Thickness | 16 mm |
| Car Type | ACM21 / ACM26 2001 , 2002 , 2003 , 2004 |
| Oil cooler | Φ 22 * 375 |
| Manufacturer Part Number | KJ-12483 |
| Carton Size | 800 * 120 * 610 mm |
| Transmission | AT |
| Core Size | 425 * 728 * 16 / 26 mm |
| Tank Material | Plastic |
| Tank Size | 48 / 48 * 756 mm |
| Core Material | Aluminum |
| Tank Material | Plastic |
Our Services
1. High Quality
For auto radiator, we all is using high quality materials, we have advanced production equipment, strict requirements for production process, and perfect control, so the finished product is very good.
2. Competitive Price
We have many excellent long-term cooperation suppliers to provide us with alumium material and some other parts, which not also high quality, but also good price, so the price of our radiator is very competitive.
3. Perfect After-sale Service
According to our company's rule, we support one-year quality guarantee after you receive the goods. During this time, if you meet any quality problem, please contact with us, we can provide you with an replacement. The premise is non-human damage.
More Information
| KJ-12483-PA16 | ACM21/ACM26'26 01-04 | PA16/AT |
| KJ-12483-PA26 | ACM21/ACM26'26 01-04 | PA26/AT |
| KJ-12483-PA32 | ACM21/ACM26'26 01-04 | PA32/AT |
| KJ-12484-PA16 | ACM21/ACM26'26 01-04 | PA16/MT |
| KJ-12484-PA26 | ACM21/ACM26'26 01-04 | PA26/MT |
| KJ-12484-PA32 | ACM21/ACM26'26 01-04 | PA32/MT |
Structure Chart
| Brazed Radiator Structure | ||
| 1. Filler Neck | 8. Side Plate | 15. KINGA Logo |
| 2. Top Header Plate | 9. Core Height | 16. Bottom Header Plate |
| 3. Inlet Pipe | 10. Fin | 17. Water switch |
| 4. Top Tank | 11. Tube | 18. Bottom Tank |
| 5. Top Mounting Pins | 12. Core Width | 19. Oil Cooler |
| 6. Fan Mount | 13. Core Thickness | 20. Outlet Pipe |
| 7. Overflow Pipe | 14. Clip | |
Packing
Packaging design according to customer requirements.
NOTICE
1. Compare your radiator to the picture below
2. Flush the entire cooling system of the vehicle.
3. Use the astm-approved antifreeze and distilled or de-ionized water.
FAQ
Q1: what's your terms of payment?
A: t/t, 30% deposit before production, the balance before shipment.western union.paypal.
Q2: what's your moq?
A: our moq is 30pcs, we can also send same sample for your checking first before you place an order, please contact with us for detail
Q3: how long is your delivery time?
A: in usual, our delivery time is 20-30 days for radiator, it need 25-40 days if meet busy season.
Please feel free to contact us for any question! Join us, this is a new beginning of the journey , you will feel the most efficient service, best quality and excellent reputation.Thanks.
