1997 SXA11 , 1996 toyota rav4 radiator automatic transmission repair parts

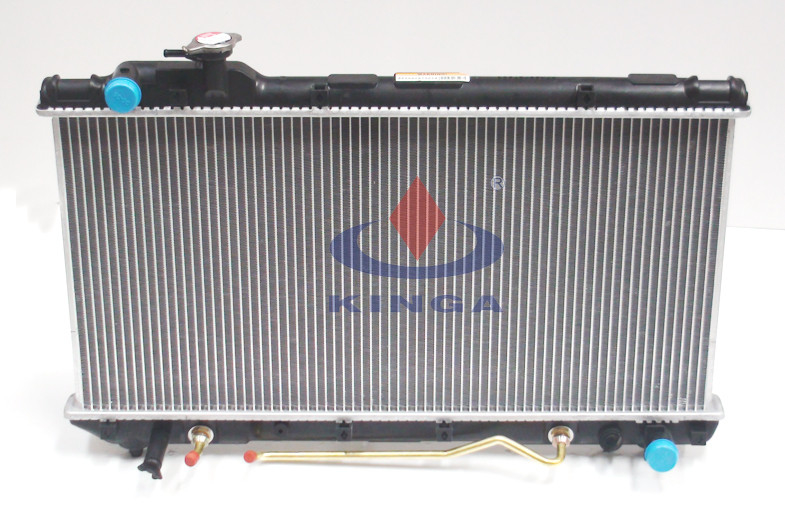

Large Image : 1997 SXA11 , 1996 toyota rav4 radiator automatic transmission repair parts

Product Details:

Place of Origin:	MADE IN CHINA
Brand Name:	KINGA
Certification:	ISO / TS 16949
Model Number:	KJ-12205-PA16 / PA26

Payment & Shipping Terms:

Minimum Order Quantity:	30 PCS
Price:	Negotiation
Packaging Details:	Neutral Packing / Foam Corner Protector / Blister Packing / Cardboard Protector
Delivery Time:	45 Days
Payment Terms:	T/T L/C
Supply Ability:	600,000 PCS / Year
Price Terms::	FOB ShenZhen / GuangZhou

Contact Now

Detailed Product Description

High Light:	toyota camry radiator , toyota corolla radiator

High Light:

toyota camry radiator

toyota corolla radiator

1997 SXA11 , 1996 toyota rav4 radiator automatic transmission repair parts

tem Specifications

Manufacturer Part Number	KJ-12205
Car Type	RAV4' 1996 , 1997 SXA11
Carton Size	770 * 125 * 520 mm
Oil cooler	Φ 22 * 400
Transmission	AT
Thickness	16 mm
Core Size	350 * 698 * 16 / 26 mm
Tank Size	50 / 50 * 727 mm
DPI	1859
Core Material	Aluminum
Tank Material	Plastic
OEM	16400-7A120 / 16400-7A121 / 16400-7A122

More Information

KJ-12205-PA16	RAV4'96-97 SXA11	PA16/AT
KJ-12205-PA26	RAV4'96-97 SXA11	PA26/AT
KJ-12205-PA32	RAV4'96-97 SXA11	PA32/AT
KJ-12206-PA16	RAV4'96-97 SXA11	PA16/MT
KJ-12206-PA26	RAV4'96-97 SXA11	PA26/MT

Question & Answer

20GP container about 450pcs

40HQ container about 1050pcs

Warranty:12 months

Structure Chart

Brazed Radiator Structure
1. Filler Neck	8. Side Plate	15. KINGA Logo
2. Top Header Plate	9. Core Height	16. Bottom Header Plate
3. Inlet Pipe	10. Fin	17. Water switch
4. Top Tank	11. Tube	18. Bottom Tank
5. Top Mounting Pins	12. Core Width	19. Oil Cooler
6. Fan Mount	13. Core Thickness	20. Outlet Pipe
7. Overflow Pipe	14. Clip

1997 SXA11 , 1996 toyota rav4 radiator automatic transmission repair parts

Packing

1997 SXA11 , 1996 toyota rav4 radiator automatic transmission repair parts

Packaging design according to customer requirements.

NOTICE

1. Compare your radiator to the picture below

1997 SXA11 , 1996 toyota rav4 radiator automatic transmission repair parts

2. Flush the entire cooling system of the vehicle.

3. Use the astm-approved antifreeze and distilled or de-ionized water.
