Product Details:
Payment & Shipping Terms:
|

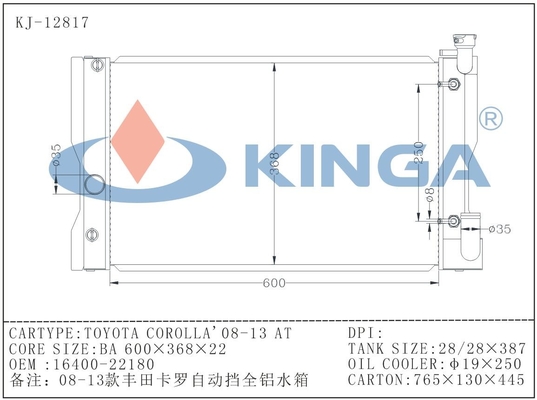

| CORE SIZE: | 600MM*368MM*22MM | TANK SIZE: | 28*/28*387mm |
|---|---|---|---|
| WARRANTY: | 12 MONTHS | AT/MT: | AT |
| MARKET TYPE: | AFTER MARKET | Core Material: | Aluminum |
| Tank Material: | Aluminum | MAKE: | TOYOTA |
| Car Type: | COROLLA'08-13 AT | Inlet Pipe: | Diameter 35mm |
| Core Thickness: | 22MM | Carton Size: | 765*130*445mm |
| OEM: | 16410-22180/16410-22181/Od481 | ||
| High Light: | high performance aluminum radiators,custom car radiators |
||

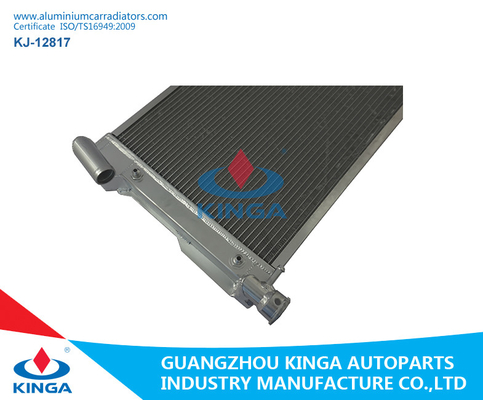

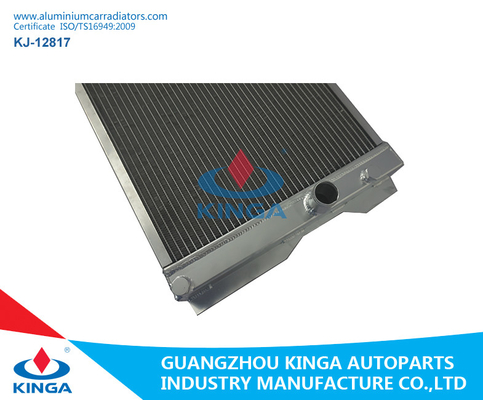

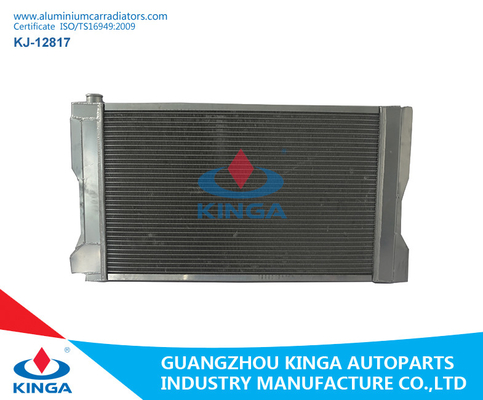

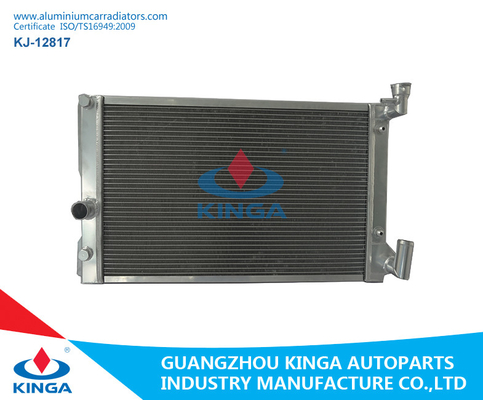

Item Introduction
| Manufacturer Part Number | KJ-12817 |
| Car Type | Corolla'08-13 AT |
| Core Height | 368mm |
| Core Thickness | 22mm |
| Transmission | MT |
| Core Width | 600mm |
| Material | Aluminum core, Aluminum tank |
| Packing | As the requirement of customers |
| Color | Silver |
| Brand Name | TOYOTA |
| Warrantly | 12 months |
Structure Chart
| Brazed Radiator Structure | ||
| 1 . Top Tank | 8 . Side Plate | 15 . KINGA Logo |
| 2 . Filler Neck | 9 . Core Height | 16 . Bottom Tank |
| 3 . Inlet Pipe | 10 . Fin | 17 . Water switch |
| 4 . Top Header Plate | 11 . Tube | 18 . Bottom Header Plate |
| 5 . Top Mounting Pins | 12 . Core Width | 19 . Oil Cooler |
| 6 . Fan Mount | 13 . Core Thickness | 20 . Outlet Pipe |
| 7 . Overflow Pipe | 14 . Clip | |
Advantages
Excellent quality :
Strict quality control through our quality control team and test machines .
Professional team :
More than 20 years Technical & Sales Support team offer you the best service.
Delivery :
Exact Delivery Time can be guaranteed after having confirmation with you .
Effeciency:
Any email or inquiry from you will be replied within 24 hours,a quotation is ready in 2mins.
High-speed Production :
.
Please feel free to contact us for any question! Join us, this is a new beginning of the journey , you will feel the most efficient service, best quality and excellent reputation!
