| Cartype: | VITARA ' 88 - 97 TA01 G16A | Core Size: | PA 377 * 478 * 16 / 26 Mm |
|---|---|---|---|
| Tank Size: | 48 / 48 * 507 Mm | Core Thickness: | 16 / 26mm |
| AT / MT: | AT | Place Of Origin: | Guangzhou China ( Mainland ) |
| OEM: | 17700 - | Oil Cooler: | Φ 22 * 325 Mm |
| High Light: | car radiator replacement,car parts radiator |
||

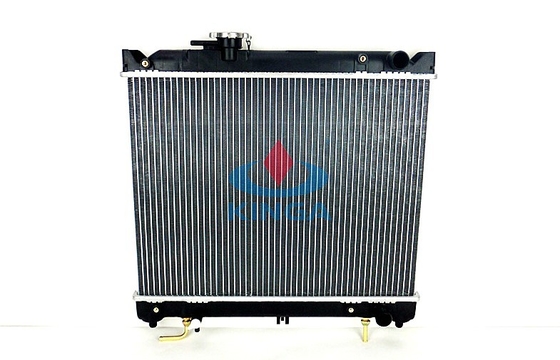

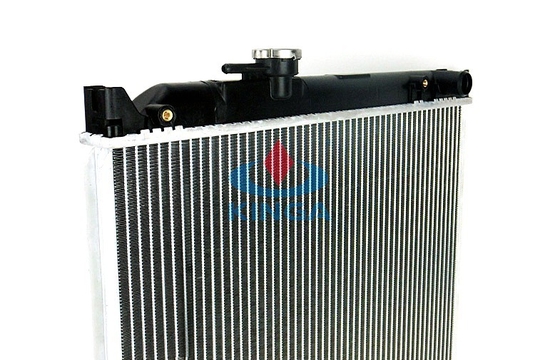

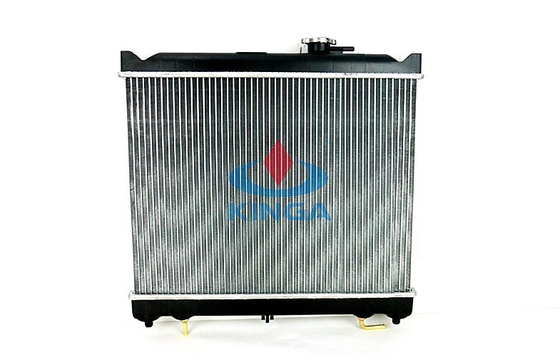

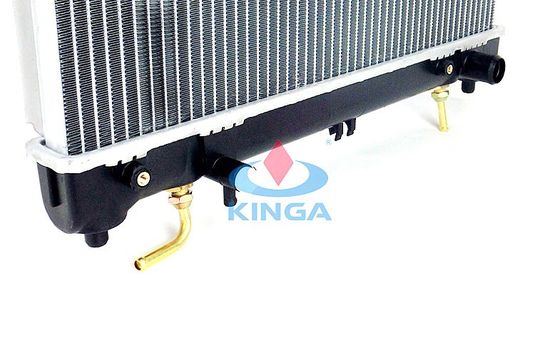

Aluminium Car Suzuki Radiator for VITARA ' 88 - 97 TA01 G16A OEM 17700 - AT
Our Advantages
1. Efficiency : Any inquiry or email will be replied within 24 hours .
2. Profession: Over 20 years experience technical and sales support team can offer you the best service .
3. Delivery : 15-20 days for one container .
4. Guaranty : Strict quality control through our quality control team , one year warranty against BL date ,
any leakage will replace or return by money .
5. High quality and competitive price : We are using high quality materials , we have advanced production
equipment , strict requirements for production , good price .
A Large Number of Radiators Supply
|
Peugeot 307 |
KJ - 50012 - PA16 / 22 / 26 |
PA16 / 22 / 26 MT |
|
Hyundai KIA PICANTO ' 10 |
KJ - 21152A - PA16 / 26 |
PA16 / 26 MT |
|
Suzuki VITARA ' 88 - 97 TA01 G16A |
KJ - 18019A - PA16 / 26 |
PA16 / 26 AT |
|
Mitsubishi PICKUP L200 ' 98 |
KJ - 14094 - PA16 / 26 / 32 / 36 |
PA16 / 26 / 32 / 36 MT |
|
Toyota COROLLA 01-04 ZZE122 |
KJ - 12165 - PA16 / 26 |
PA16 / 26/ AT |
About Product
Manufacturer Part Number : KJ - 18019A - PA16 / 26
Core Size : PA 377 * 478 * 16 / 26 mm
Tank Size : 48 / 48 * 507 mm
Oil Cooler : Φ 22 * 325 mm
Quality Control : ISO9001 : 2000 , TS16949 certification
OEM : 17700
Core Material : Aluminium
Carton Size : 560 * 110 * 555 mm
Warranty : 1 Year
General Radiator Structure
|
Brazed |
||
|
1. Filler Neck |
8. Side Plate |
15. KINGA Logo |
|
2. Top Header Plate |
9. Core Height |
16. Bottom Header Plate |
|
3. Inlet Pipe |
10. Fin |
17. Water switch |
|
4. Top Tank |
11. Tube |
18. Bottom Tank |
|
5. Top Mounting Pins |
12. Core Width |
19. Oil Cooler |
|
6. Fan Mount |
13. Core Thickness |
20. Outlet Pipe |
|
7. Overflow Pipe |
14. Clip |
|
Pay Attention
1. Radiators , water to water injection in full , on the water to the engine cylinder body of the switch
is turned on , the water out , again close , so as to avoid blisters .
2. In the process of installation radiator , please do not damage the scattered tropical ( film ) and the
radiator , bruised to ensure the cooling capacity and seal .
3. In the winter to prevent ice core fracture phenomenon , such as long - term parking or indirectly ,
should be on the water tank cover and switch , all the water out .
4. Users according to actual situation should be between 1 to 3 months to completely clean the radiator
core body at a time.When cleaning , along the counter in the direction of the wind side rinse with water .
5. Water level gauge should be cleaned once every 3 months or according to actual situation , all the
parts to be removed with warm water and not corrosive detergent to clean .
Design Paper
Find us
|
Factory address |
Guangcong Road No.18 Conghua economic department area |
| Company name |
GuangzhouKinga Auto Parts Industry Manufacture Co.,Ltd |
|
Export department Tel |
86 - 20 - 87810068 |
|
Tel |
0086 - 13560106402 |
|
Fax |
86 - 20 - 87819013 |
|
Postal code |
510900 |
|
Company Website |
http://www.aluminiumcarradiators.com |
More details aboout us
Q1 : What ' s your terms of payment ?
A : T/T , 30% deposit before production , the balance before shipment.Western union . Paypal .
Q2 : What ' s your MOQ ?
A : Our MOQ is 30PCS , we can also send same sample for your checking first before you place an order ,
please contact with us for detail .
Q3 : How long is your delivery time ?
A : In usual , our delivery time is 20 - 30 days for radiator , it need 25 - 40 days if meet busy season .
One Corner of Warehouse
Please feel free to contact us for any question ! Join us , this is a new beginning of the journey , you will
feel the most efficient service , best quality and excellent reputation !
