OEM JE48-15-200 Auto Mazda Radiator coolers For SEDAN 929HD 92 - 96

Good quality Toyota Radiator for sales
Good quality Toyota Radiator for sales
We have been clients of Kinga for over 6 years. Their radiator product is second to none, a very professional business. A very friendly team, with exceptional customer care, we wouldn't think of going to anyone else for all of our product needs. As the saying goes “Forget the rest when you already have the Best”. We would highly recommend Kinga.

—— Mr Anand from Kuwait

KINGA it's a professional manufacturer,good quality、good service and goo price! I order a 20ft container this time. I will order with Kinga again.

—— Mr Bilaal bhana

It is a pleasant experience to cooperate with KINGA.They are fast-reacted and offer good and stable-quality products. I just need to wait my ship now.

—— Mr Henri Torbey from USA

They are very professional and have a great service. Thanks for their supporting for my urgent order. The VVO package is beautiful with good quality.

—— Mr John Brown from Dubai

Je suis heureux de faire une affaire de radiateur avec Kinga à nouveau. Je commande 48 ft cette fois. La plupart de leurs produits se vend très bien.

—— Guy Mollet de Paris

I'm Online Chat Now

OEM JE48-15-200 Auto Mazda Radiator coolers For SEDAN 929HD 92 - 96

China OEM JE48-15-200 Auto Mazda Radiator coolers For SEDAN 929HD 92 - 96 supplier
OEM JE48-15-200 Auto Mazda Radiator coolers For SEDAN 929HD 92 - 96 supplier OEM JE48-15-200 Auto Mazda Radiator coolers For SEDAN 929HD 92 - 96 supplier OEM JE48-15-200 Auto Mazda Radiator coolers For SEDAN 929HD 92 - 96 supplier OEM JE48-15-200 Auto Mazda Radiator coolers For SEDAN 929HD 92 - 96 supplier

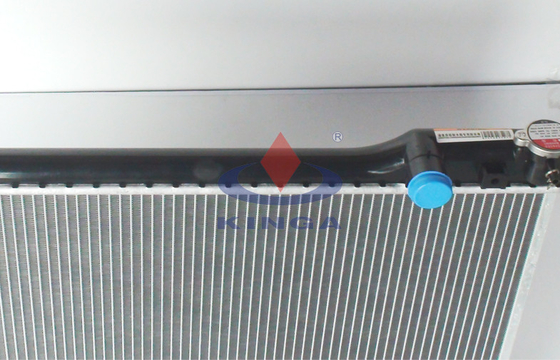

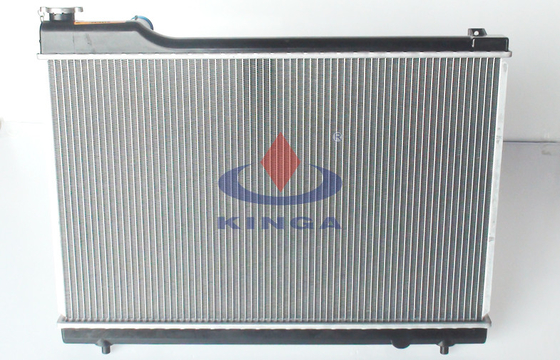

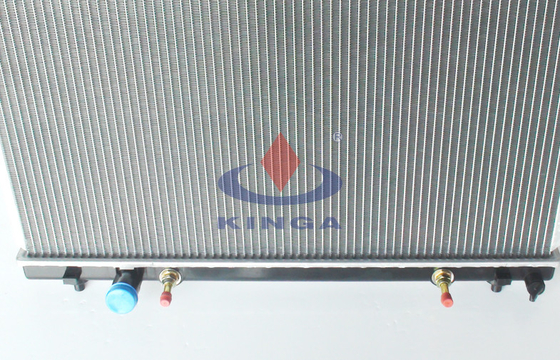

Large Image :  OEM JE48-15-200 Auto Mazda Radiator coolers For SEDAN 929HD 92 - 96

Product Details:

Place of Origin: MADE IN CHINA
Brand Name: KINGA
Certification: ISO / TS 16949
Model Number: KJ-16047-PA16 / 26

Payment & Shipping Terms:

Minimum Order Quantity: 30PCS
Price: Negotiation
Packaging Details: Neutral Packing / Foam Corner Protector / Blister Packing / Cardboard Protector
Delivery Time: 45 Days
Payment Terms: T/T L/C
Supply Ability: 600,000 PCS / Year
Contact Now
Detailed Product Description
High Light:

auto radiator

,

auto parts radiator

OEM JE48-15-200 Auto Mazda Radiator coolers For SEDAN 929HD 92 - 96





Item Specifications



Manufacturer Part Number KJ -16047
OEM JE48 - 15 - 200
Car Type SEDAN 929HD 92 - 96
Carton Size 735 * 115 * 590 mm
Oil cooler Φ 22 * 250
Transmission AT
Thickness 16 mm
Core Size 422 * 668 * 16 / 26 mm
Tank Size 46 / 46 * 692 mm
DPI 1307
Core Material Aluminum
Tank Material Plastic





More Information





KJ-16047-PA16 SEDAN 929HD'92-96 PA16/AT
KJ-16047-PA26 SEDAN 929HD'92-96 PA26/AT
KJ-16048A-PA16 SEDAN 929HD'92-96 PA16/MT
KJ-16048A-PA26 SEDAN 929HD'92-96 PA26/MT





Question & Answer



20GP container about 450pcs
40HQ container about 1050pcs
Warranty:12 months





Structure Chart



Brazed Radiator Structure
1. Filler Neck 8. Side Plate 15. KINGA Logo
2. Top Header Plate 9. Core Height 16. Bottom Header Plate
3. Inlet Pipe 10. Fin 17. Water switch
4. Top Tank 11. Tube 18. Bottom Tank
5. Top Mounting Pins 12. Core Width 19. Oil Cooler
6. Fan Mount 13. Core Thickness 20. Outlet Pipe
7. Overflow Pipe 14. Clip

OEM JE48-15-200 Auto Mazda Radiator coolers For SEDAN 929HD 92 - 96





Packing



OEM JE48-15-200 Auto Mazda Radiator coolers For SEDAN 929HD 92 - 96



Packaging design according to customer requirements.





NOTICE

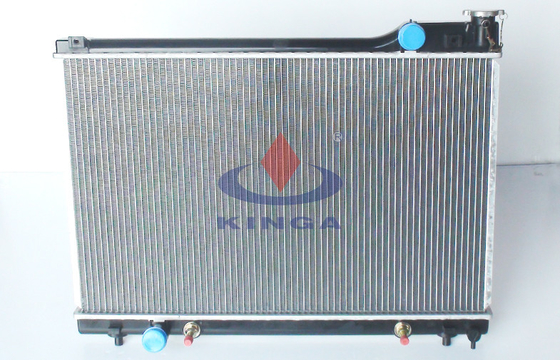

1. Compare your radiator to the picture below

OEM JE48-15-200 Auto Mazda Radiator coolers For SEDAN 929HD 92 - 96

2. Flush the entire cooling system of the vehicle.

3. Use the astm-approved antifreeze and distilled or de-ionized water.
